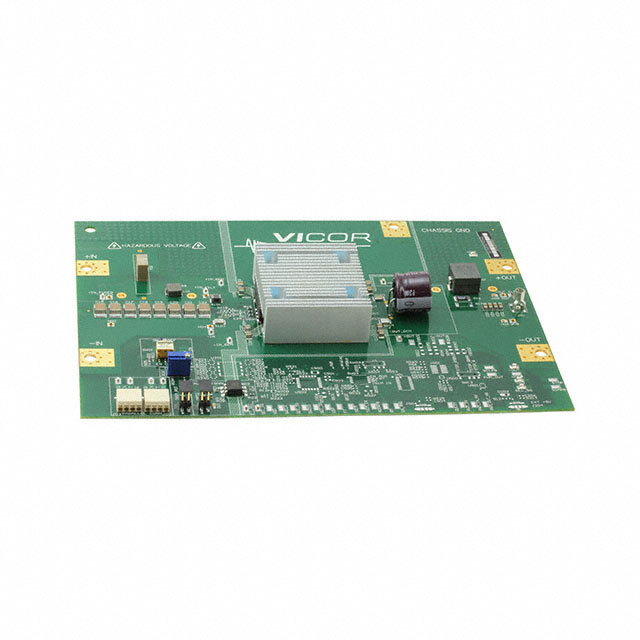

DCD300P280T500A40

Active

Vicor Corporation

EVAL BRD FOR DCM300P280T500A40

Search across all available documentation for this part.

Active

Vicor Corporation

EVAL BRD FOR DCM300P280T500A40

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Regulator Topology	Power - Output	Current - Output	Main Purpose	Outputs and Type	Outputs and Type	Utilized IC / Part	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output
Vicor Corporation DCD300P120T400A40	Board(s)	Buck	400 W	33.4 A	DC/DC Step Down	Isolated	1	DCM300P120x400A40	Fully Populated	420 V	180 V	12 V
Vicor Corporation DCD300P280T500A40	Board(s)	Buck	500 W	17.86 A	DC/DC Step Down	Isolated	1	DCM300P280x500A40	Fully Populated	420 V	200 V	28 V
Vicor Corporation DCD300P480T500A40	Board(s)	Buck	500 W	10.5 A	DC/DC Step Down	Isolated	1	DCM300P480x500A40	Fully Populated	420 V	200 V	48 V
Vicor Corporation DCD300P240T600A40	Board(s)	Buck	600 W	25 A	DC/DC Step Down	Isolated	1	DCM300P240x600A40	Fully Populated	420 V	200 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1047.95

General part information

DCM300P280x500A40 VI Chip® DCM® DC/DC, Step Down 1, Isolated Outputs Evaluation Board
