Q-020020001009i

Active

Amphenol Custom Cable

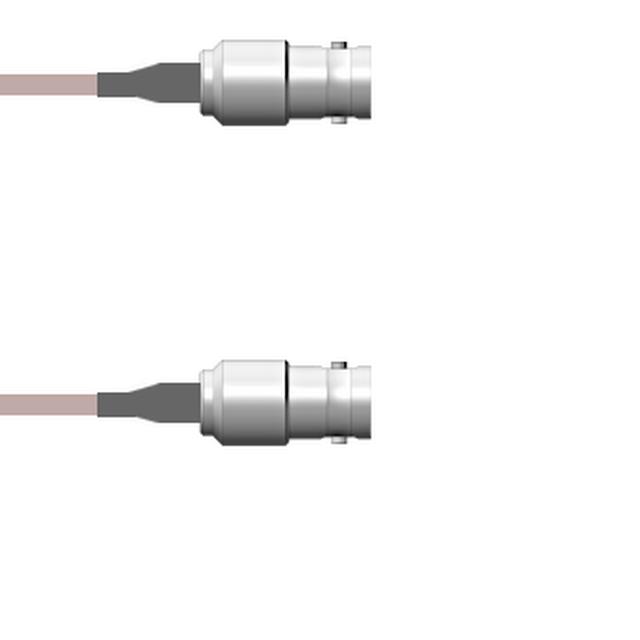

CBL ASSY BNC JACK TO JACK 9"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 9"

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector	1st Contact Gender	Style	Features	2nd Contact Gender	Cable Type	1st Connector	Color	Overall Impedance	2nd Connector Mounting Type	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-020020001009i	Free Hanging (In-Line)	4 GHz	BNC Jack	Female	BNC to BNC	Shielded	Female	RG-178	BNC Jack	Copper	50 Ohms	Free Hanging (In-Line)	9 "	228.6 mm
Amphenol Custom Cable Q-0200200011.5M	Free Hanging (In-Line)	4 GHz	BNC Jack	Female	BNC to BNC	Shielded	Female	RG-178	BNC Jack	Copper	50 Ohms	Free Hanging (In-Line)	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-0200200012.5M	Free Hanging (In-Line)	4 GHz	BNC Jack	Female	BNC to BNC	Shielded	Female	RG-178	BNC Jack	Copper	50 Ohms	Free Hanging (In-Line)	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-020020001018i	Free Hanging (In-Line)	4 GHz	BNC Jack	Female	BNC to BNC	Shielded	Female	RG-178	BNC Jack	Copper	50 Ohms	Free Hanging (In-Line)				457.2 mm	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to BNC RG-178 9.000" (228.60mm)

Technical documentation and resources

No documents available
