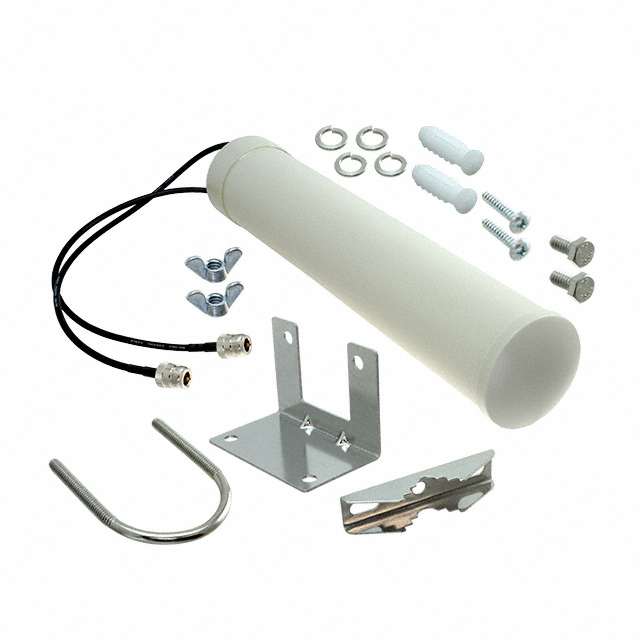

OSCAR420/0.4M/NTYPEF/S/S/19 - OSCAR420/0.4M/NTYPEF/S/19

OSCAR420/0.4M/NTYPEF/S/S/19

Active
Siretta Ltd

MIMO 2-PORT LTE OMNI ANTENNA 360

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsWhat Parameters are Important for Cellular Antenna Evaluation?Datasheet
OSCAR420/0.4M/NTYPEF/S/S/19 - OSCAR420/0.4M/NTYPEF/S/19

OSCAR420/0.4M/NTYPEF/S/S/19

Active
Siretta Ltd

MIMO 2-PORT LTE OMNI ANTENNA 360

Deep-Dive with AI

DocumentsWhat Parameters are Important for Cellular Antenna Evaluation?Datasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationOSCAR420/0.4M/NTYPEF/S/S/19
Antenna TypeWhip, Straight
FeaturesCable - 400mm
Frequency (Center/Band)2.2 GHz, 830 MHz
Frequency Group [Max]1 GHz, 3 GHz
Frequency Group [Min]300 MHz, 2 GHz
Frequency Range [Max]2.7 GHz, 960 MHz
Frequency Range [Min]1.7 GHz, 700 MHz
Gain3 dBi, 7 dBi
Height (Max) [Max] [z]360 mm
Height (Max) [Max] [z]14.173 in
Mounting TypeBracket Mount
Number of Bands2
RF Family/StandardCellular, WiFi
TerminationN Type Female (2)
VSWR3.2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 85.52
10$ 81.11
25$ 78.90
100$ 73.38

Description

General part information

OSCAR420 Series

RF ANTENNA 3G, 4G, Wi-Fi Whip, Straight N Type Female (2) Bracket Mount
