19S132-S00S3

Active

Rosenberger

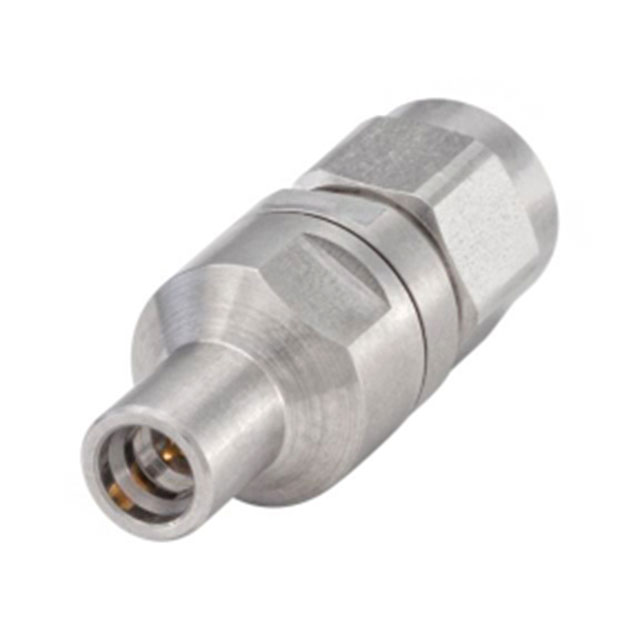

ADAPT SMP PLUG - SMA PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMP PLUG - SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	19S132-S00S3

Adapter Series	SMA to SMP
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mounting Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Frequency - Max [Max]	Convert From (Adapter End)	Conversion Type	Mating Cycles	Center Gender	Center Contact Plating	Dielectric Material	Adapter Type	Body Material	Style	Adapter Series	Impedance
Rosenberger 19S132-S00S3	Free Hanging (In-Line)	Snap-On Threaded	155 °C	-65 ░C	Beryllium Copper	26.5 GHz	SMA Plug Male Pin	Between Series	500	Male to Male	Gold	Polytetrafluoroethylene (PTFE)	Plug to Plug	Stainless Steel	Straight	SMA to SMP	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMP Plug, Male Pin 50 Ohms
