PM5-A17Y28V
ActiveBivar Inc.

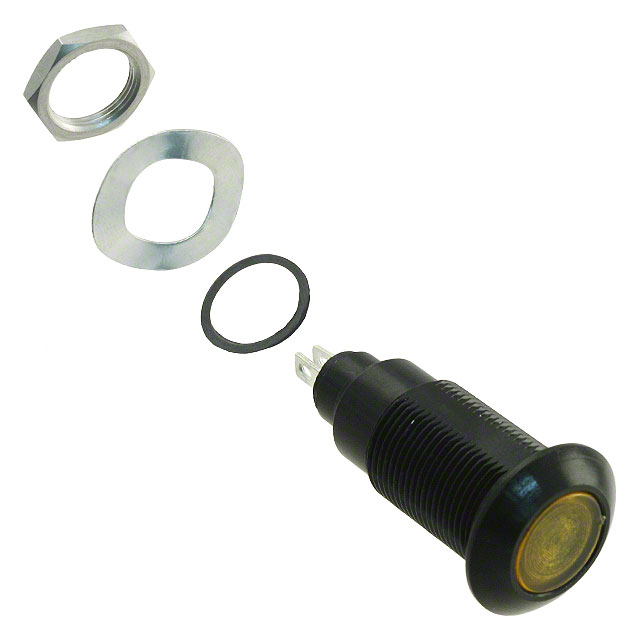

PANEL MOUNT ASSEM YELLOW, 12.7MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM5-A17Y28V
ActiveBivar Inc.
PANEL MOUNT ASSEM YELLOW, 12.7MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-A17Y28V |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size [diameter] | 10.2 mm |
| Lens Transparency | Fresnel |
| Millicandela Rating | 600 mcd |
| Panel Cutout Dimensions | 12.7 mm |
| Panel Cutout Dimensions | 0.5 in |
| Panel Cutout Shape | Round |
| Ratings | AC/DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage [Max] | 28 V |
| Voltage [Min] | 12 V |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 28.59 | |
Description
General part information
PM5-A17Y28 Series
LED Panel Indicator Yellow Fresnel 120° 12V ~ 28V 20mA Quick Connect - 0.110" (2.8mm)
