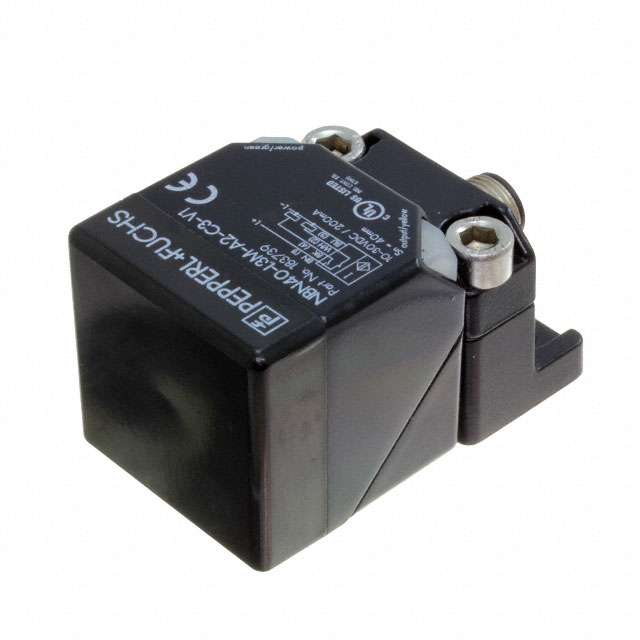

NBN40-L3M-A2-C3-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 40MM PNP

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 40MM PNP

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Indicator [custom]	Package / Case	Shielding	Material - Body	Ingress Protection	Sensor Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style
PEPPERL+FUCHS NBN40-U4-UU	253 VAC 300 VDC	20 VAC 20 VDC	1.575 in	40 mm	LED	Module	Unshielded	Polyamide (PA)	IP67	Inductive	SCR-NC/NO 2-Wire	-25 °C	85 °C
PEPPERL+FUCHS NBN40-L3M-A2-C3-V1	30 VDC	10 VDC	1.575 in	40 mm	LED	Module	Unshielded	Zinc Die-Cast	IP67	Inductive	4-Wire PNP-NC/NO	-25 °C	85 °C	Connector
PEPPERL+FUCHS NBN40-U4-A2	30 VDC	10 VDC	1.575 in	40 mm	LED	Module	Unshielded	Polyamide (PA)	IP68 IP69K	Inductive	4-Wire PNP-NC/NO	-25 °C	85 °C
PEPPERL+FUCHS NBN40-L2M-E2-V1	30 VDC	10 VDC	1.575 in	40 mm	LED	Module	Unshielded	Polyamide (PA)	IP69K	Inductive	PNP-NO 3-Wire	-25 °C	85 °C	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 40MM PNP

Technical documentation and resources
