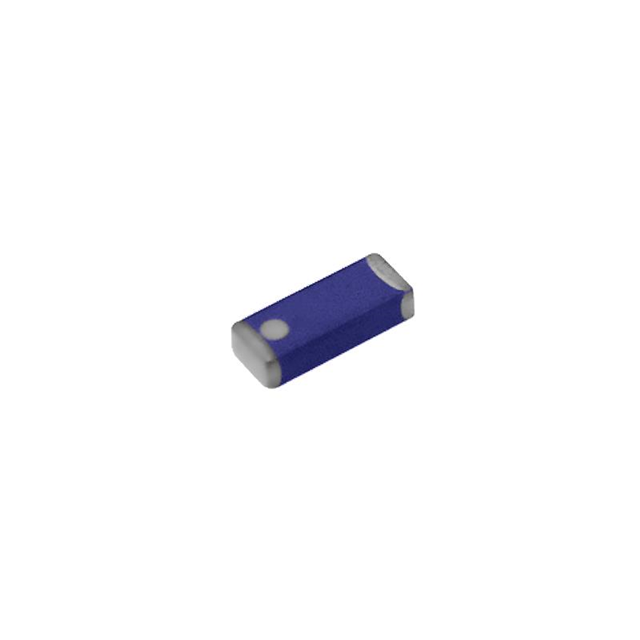

ANT5320LL45R2400A
ActivePulse Electronics
ANTENNA CHIP 2.4G HELIX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT5320LL45R2400A
ActivePulse Electronics
ANTENNA CHIP 2.4G HELIX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT5320LL45R2400A |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi, Bluetooth, ISM, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 5.22 dBi |
| Height (Max) [Max] | 0.051 " |
| Height (Max) [Max] | 1.3 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 1 W |
| Return Loss | 10 dB |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.33 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.36 | |||
| 25 | $ 0.33 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| Tape & Reel (TR) | 1000 | $ 0.16 | ||
| 2000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
ANT5320 Series
RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ Chip Solder Surface Mount
