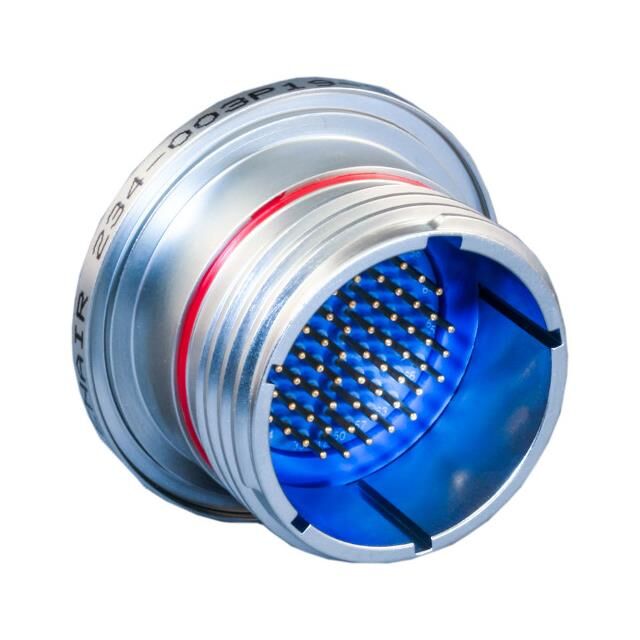

MS27467E11B99SB

Active

Corsair

PLUG STRAIGHT CABLE

Search across all available documentation for this part.

Active

Corsair

PLUG STRAIGHT CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467E11B99SB

Applications	Military, Aerospace
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	B
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Size - Insert	11-99
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp

Part	Contact Finish - Mating	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Qualification	Fastening Type	Connector Type	Material Flammability Rating	Termination	Color	Ingress Protection	Shielding	Features	Orientation	Shell Size - Insert	Insert Material	Shell Size, MIL	Grade	Primary Material	Number of Positions
Corsair MS27467E11B4PB	Gold	Aerospace Military	-65 ░C	200 °C	Free Hanging (In-Line)	MIL-DTL-38999 Series I	Bayonet Lock	Male Pins Plug	UL94 V-0	Crimp	Olive Drab	IP67	Shielded	Coupling Nut	B	11-4	Thermoplastic	A	Military	Metal	4
Corsair MS27467E11B99SB	Gold	Aerospace Military	-65 ░C	200 °C	Free Hanging (In-Line)	MIL-DTL-38999 Series I	Bayonet Lock	Female Sockets Plug	UL94 V-0	Crimp	Olive Drab	IP67	Shielded	Coupling Nut	B	11-99	Thermoplastic	A	Military	Metal	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Female Sockets Crimp
