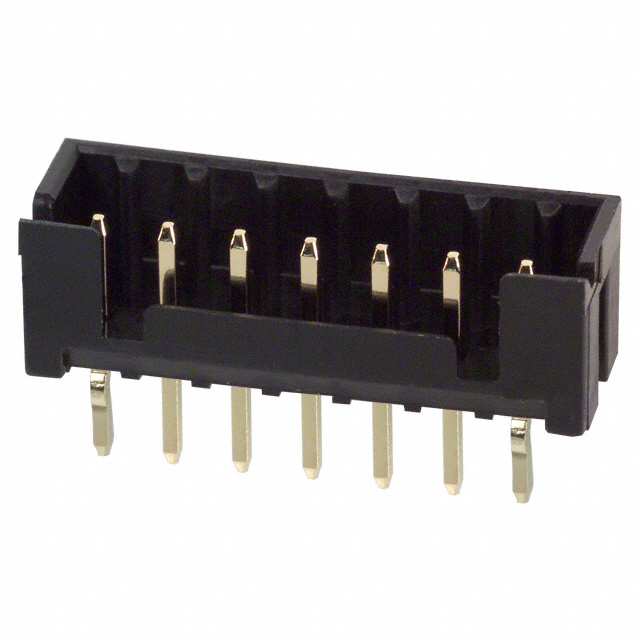

DF3-7P-2DSA(01)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 7POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF3-7P-2DSA(01) Spec Datasheet

DF3-7P-2DSA(01)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 7POS 2MM

Deep-Dive with AI

DocumentsDF3-7P-2DSA(01) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-7P-2DSA(01)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length [x]	0.299 in
Overall Contact Length [x]	7.6 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder, Press-Fit

DF3-7 Series

Part	Insulation Material	Style	Number of Positions Loaded	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Material	Contact Finish - Post	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Fastening Type	Mounting Type	Material Flammability Rating	Insulation Color	Contact Type	Number of Rows	Features	Termination	Contact Shape	Shrouding	Note	Contact Termination	Pitch [x]	Pitch [x]	Color	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Mated Stacking Heights [z]	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Wire Gauge	Contact Finish	Cable Termination	Wire Type
Hirose Electric USA, Inc. DF3-7P-2V(20)	Nylon Polyamide (PA)	Board to Board Cable	All	Header	0.079 in	2 mm	7	Brass	Tin	3 A	105 ░C	-55 °C	5.9 mm	0.232 in	Push-Pull	Surface Mount	UL94 V-0	Beige	Male Pin	1	Board Guide	Solder	Circular	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3-7S-2C	Nylon Polyamide (PA)			Receptacle			7				105 ░C	-55 °C				Free Hanging (In-Line)			Female Socket	1					Contacts Not Included	Crimp	0.079 in	2 mm	Black
Hirose Electric USA, Inc. DF3-7P-2DSA(01)	Nylon Polyamide (PA)	Board to Board Cable	All	Header	0.079 in	2 mm	7	Brass		3 A	105 ░C	-55 °C	5 mm	0.197 in	Push-Pull	Through Hole	UL94 V-0	Black	Male Pin	1		Press-Fit Solder	Square	Shrouded - 4 Wall						0.114 in	2.9 mm	Gold	0.122 in	3.1 mm	0.203 Ám	8 Áin	0.299 in	7.6 mm
Hirose Electric USA, Inc. DF3-7S-2DSA(55)	Nylon Polyamide (PA)	Board to Board Cable	All	Receptacle	0.079 in	2 mm	7	Phosphor Bronze	Tin	3 A	85 °C	-30 ░C	5.9 mm	0.232 in	Friction Lock	Through Hole	UL94 V-0	Black	Female Socket	1		Solder	Square							0.118 in	3 mm	Gold			0.203 Ám	8 Áin			6.6 mm 7.5 mm	30 VAC	1 çm	39.4 çin
Hirose Electric USA, Inc. DF3-7S-2R28(05)				Receptacle			7									Free Hanging (In-Line)			Female Socket	1	Closed End						0.079 in	2 mm	Black														28 AWG	Tin	IDC	Discrete
Hirose Electric USA, Inc. DF3-7EP-2C	Nylon Polyamide (PA)			Plug			7				105 ░C	-55 °C				Free Hanging (In-Line)			Male Pin	1					Contacts Not Included	Crimp	0.079 in	2 mm	Black
Hirose Electric USA, Inc. DF3-7S-2C(16)				Receptacle			7									Free Hanging (In-Line)			Female Socket	1					Contacts Not Included	Crimp	0.079 in	2 mm	Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.03
		10	$ 0.78
		100	$ 0.60
		500	$ 0.50
		1000	$ 0.47
		5000	$ 0.40
		10000	$ 0.37

Description

General part information

DF3-7 Series

Connector Header Through Hole 7 position 0.079" (2.00mm)

Documents

Technical documentation and resources

DF3-7P-2DSA(01) Spec

Datasheet
