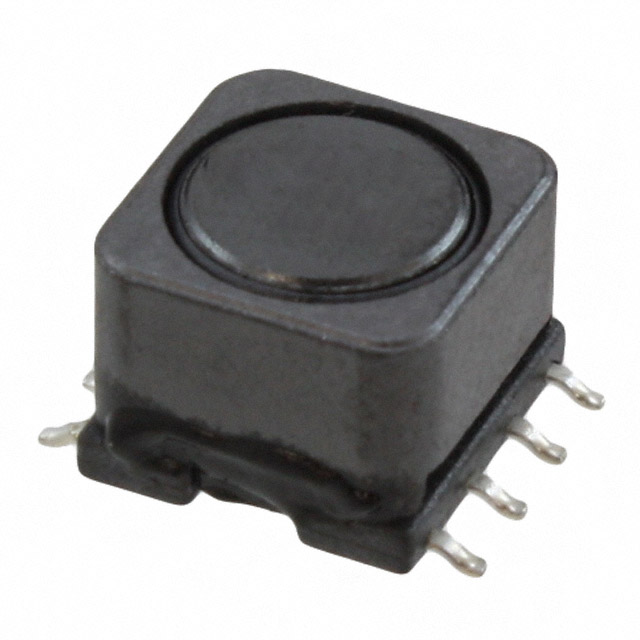

SRR0908-681YL

Active

Bourns Inc.

IND10X12.5X7.5MM,680UH15%0.35A,SHDSMD /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRR0908-681YL

Active

Bourns Inc.

IND10X12.5X7.5MM,680UH15%0.35A,SHDSMD /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR0908-681YL

Current - Saturation (Isat)	500 mA
Current Rating (Amps)	350 mA
DC Resistance (DCR) [Max]	1.7 Ohm
Frequency - Self Resonant	2 MHz
Height - Seated (Max) [Max]	0.307 in
Height - Seated (Max) [Max]	7.8 mm
Inductance	680 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Q @ Freq	30, 796 kHz
Shielding	Shielded
Size / Dimension [x]	0.394 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	0.374 in
Size / Dimension [y]	9.5 mm
Tolerance	15 %
Type	Wirewound, Drum Core

SRR0908 Series

Part	Type	Inductance	Frequency - Self Resonant	Mounting Type	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Q @ Freq	Material - Core	Shielding	DC Resistance (DCR)
Bourns Inc. SRR0908-101YL	Drum Core Wirewound	100 µH	6 MHz	Surface Mount	280 mOhm	0.307 in	7.8 mm	15 %	1 A	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	1.3 A	40 796 kHz	Ferrite	Shielded
Bourns Inc. SRR0908-681YL	Drum Core Wirewound	680 µH	2 MHz	Surface Mount	1.7 Ohm	0.307 in	7.8 mm	15 %	350 mA	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	500 mA	30 796 kHz	Ferrite	Shielded
Bourns Inc. SRR0908-152YL	Drum Core Wirewound	1.5 mH	1.3 MHz	Surface Mount	4 Ohm	0.307 in	7.8 mm	15 %	0.25 A	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	350 mA	120 252 kHz	Ferrite	Shielded
Bourns Inc. SRR0908-181YL	Drum Core Wirewound	180 µH	4.2 MHz	Surface Mount	500 mOhm	0.307 in	7.8 mm	15 %	700 mA	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	1 A	35 796 kHz	Ferrite	Shielded
Bourns Inc. SRR0908-390ML	Drum Core Wirewound	39 µH	5 MHz	Surface Mount	135 mOhm	0.307 in	7.8 mm	20 %	1.5 A	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	2.4 A	2.52 MHz 45	Ferrite	Shielded
Bourns Inc. SRR0908-682YL	Drum Core Wirewound		600 kHz	Surface Mount	16.5 Ohm	0.307 in	7.8 mm	15 %	100 mA	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	160 mA	90 252 kHz	Ferrite	Shielded
Bourns Inc. SRR0908-470ML	Drum Core Wirewound	47 µH	4 MHz	Surface Mount	150 mOhm	0.307 in	7.8 mm	20 %	1.4 A	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	2.3 A	2.52 MHz 40	Ferrite	Shielded
Bourns Inc. SRR0908-103YL	Drum Core Wirewound	10 mH	500 kHz	Surface Mount	26 Ohm	0.307 in	7.8 mm	15 %	0.09 A	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	130 mA	79.6 kHz 110	Ferrite	Shielded
Bourns Inc. SRR0908-680ML	Drum Core Wirewound	68 µH	2.5 MHz	Surface Mount		0.307 in	7.8 mm	20 %	1.25 A	125 °C	-40 °C	0.374 in	0.394 "	9.5 mm	10 mm	1.9 A	2.52 MHz 30	Ferrite	Shielded	184 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1200	$ 0.59
Newark	Each (Supplied on Full Reel)	1000	$ 0.70
		2000	$ 0.64
		4000	$ 0.57
		6000	$ 0.55
		10000	$ 0.54

Description

General part information

SRR0908 Series

680 µH Shielded Drum Core, Wirewound Inductor 350 mA 1.7Ohm Max 8-SMD, Gull Wing
