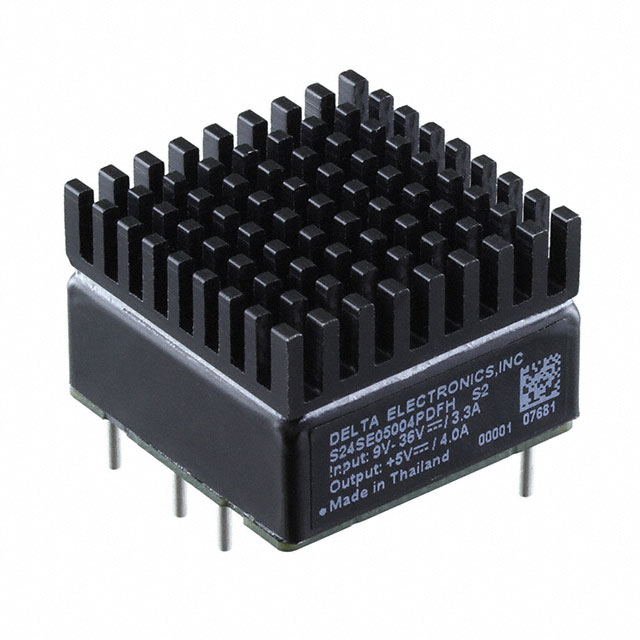

S24SE05004PDFH

Active

Delta Electronics

DC DC CONVERTER 5V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S24SE05004PDFH

Active

Delta Electronics

DC DC CONVERTER 5V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S24SE05004PDFH

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	4 A
Efficiency	88 %
Features	OVP, OCP, OTP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V

S24SE Series

Part	Type	Voltage - Isolation	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Power (Watts)	Control Features	Efficiency	Applications	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Delta Electronics S24SE120R8PDFH	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	10 W	Active High Enable	86 %	ITE (Commercial) Railway	OCP OTP OVP Remote On/Off UVLO	85 °C	-40 °C	9 V	830 mA	12 V
Delta Electronics S24SE15002PDFH	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	30 W	Active High Enable	88 %	ITE (Commercial) Railway	OCP OTP OVP Remote On/Off UVLO	85 °C	-40 °C	9 V	2 A	15 V
Delta Electronics S24SE12001PDFA	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	15 W	Active High Enable	87.5 %	ITE (Commercial)	Remote On/Off UVLO	85 °C	-40 °C	9 V	1.25 A	12 V	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE05004PDFH	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	20 W	Active High Enable	88 %	ITE (Commercial)	OCP OTP OVP Remote On/Off	85 °C	-40 °C	9 V	4 A	5 V	1
Delta Electronics S24SE12003NDFA	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	30 W	Active Low Enable	88 %	ITE (Commercial)	Remote On/Off UVLO	85 °C	-40 °C	9 V	2.5 A	12 V	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE05003PDFA	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	15 W	Active High Enable	89 %	ITE (Commercial)	Remote On/Off UVLO	85 °C	-40 °C	9 V	3 A	5 V	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE12002PDFA	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	20 W	Active High Enable	88 %	ITE (Commercial)	Remote On/Off UVLO	85 °C	-40 °C	9 V	1.67 A	12 V	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE150R6NDFA	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	10 W	Active Low Enable	87 %	ITE (Commercial)	Remote On/Off UVLO	85 °C	-40 °C	9 V	670 mA	15 V	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE05004NDFA	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	20 W	Active Low Enable	88 %	ITE (Commercial)	Remote On/Off UVLO	85 °C	-40 °C	9 V	4 A	5 V	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE3R307PDFH	Isolated Module	1.6 kV	6-DIP Module	36 V	Through Hole	25 W	Active High Enable	88 %	ITE (Commercial) Railway	OCP OTP OVP Remote On/Off UVLO	85 °C	-40 °C	9 V	7.5 A	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 40.45
		5	$ 40.13
		10	$ 39.82
		30	$ 38.55
		50	$ 36.66
		100	$ 34.13
		250	$ 33.62

Description

General part information

S24SE Series

Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
