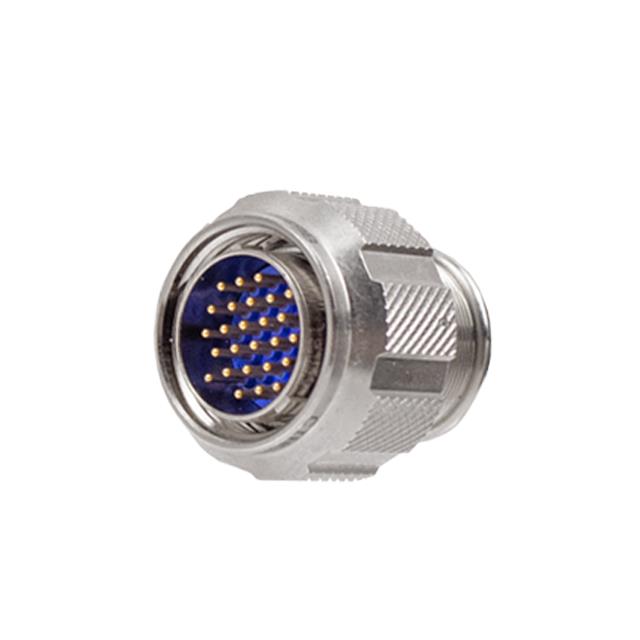

MD801-007-16M13-3SA

Active

Cinch Connectivity Solutions Trompeter

MINIATURE D38999 CIRCULAR CONNEC

Deep-Dive with AI

Search across all available documentation for this part.

MD801-007-16M13-3SA

Active

Cinch Connectivity Solutions Trompeter

MINIATURE D38999 CIRCULAR CONNEC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MD801-007-16M13-3SA

Applications	Military, Aerospace
Cable Opening [custom]	0.65 in
Cable Opening [custom]	16.5 mm
Color	Silver
Connector Type	Female Sockets, Plug
Current Rating (Amps)	5 A
Features	Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert	13-3
Shielding	Shielded
Termination	Crimp

MD801-007 Series

Part	Orientation	Shell Finish	Features	Applications	Primary Material	Current Rating (Amps)	Termination	Shell Size - Insert	Color	Mounting Type	Shell Material	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Connector Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions
Cinch Connectivity Solutions Trompeter MD801-007-16M13-3PB	B	Electroless Nickel	Coupling Nut	Aerospace Military	Metal	5 A	Crimp	13-3	Silver	Free Hanging (In-Line)	Aluminum	0.65 in	16.5 mm	IP67 - Dust Tight Waterproof	Male Pins Plug	Shielded	-65 ░C	347 °F
Cinch Connectivity Solutions Trompeter MD801-007-16NF13-37SC	C	Olive Drab Chromate over Cadmium	Coupling Nut	Aerospace Military		5 A	Crimp		Olive Drab	Free Hanging (In-Line)	Aluminum			IP67 - Dust Tight Waterproof	Female Sockets Plug	Shielded	-65 ░C	347 °F	13	37	37
Cinch Connectivity Solutions Trompeter MD801-007-16M8-13PB	B	Electroless Nickel	Coupling Nut	Aerospace Military		5 A	Crimp		Silver	Free Hanging (In-Line)	Aluminum			IP67 - Dust Tight Waterproof	Male Pins Plug	Shielded	-65 ░C	347 °F	8	13	13
Cinch Connectivity Solutions Trompeter MD801-007-16NF6-4SE	E	Olive Drab Chromate over Cadmium	Coupling Nut	Aerospace Military	Metal	5 A	Crimp		Olive Drab	Free Hanging (In-Line)	Aluminum	0.29 in	7.37 mm	IP67 - Dust Tight Waterproof	Female Sockets Plug	Shielded	-65 ░C	347 °F	4	6	4
Cinch Connectivity Solutions Trompeter MD801-007-16M6-7PF	F	Electroless Nickel	Coupling Nut	Aerospace Military		5 A	Crimp		Silver	Free Hanging (In-Line)	Aluminum			IP67 - Dust Tight Waterproof	Male Pins Plug	Shielded	-65 ░C	347 °F	6	7	7
Cinch Connectivity Solutions Trompeter MD801-007-16NF10-26SE	E	Olive Drab Chromate over Cadmium	Coupling Nut	Aerospace Military		5 A	Crimp		Olive Drab	Free Hanging (In-Line)	Aluminum			IP67 - Dust Tight Waterproof	Female Sockets Plug	Shielded	-65 ░C	347 °F	10	26	26
Cinch Connectivity Solutions Trompeter MD801-007-16M13-3SA	A	Electroless Nickel	Coupling Nut	Aerospace Military	Metal	5 A	Crimp	13-3	Silver	Free Hanging (In-Line)	Aluminum	0.65 in	16.5 mm	IP67 - Dust Tight Waterproof	Female Sockets Plug	Shielded	-65 ░C	347 °F
Cinch Connectivity Solutions Trompeter MD801-007-16M8-13PD	D	Electroless Nickel	Coupling Nut	Aerospace Military		5 A	Crimp		Silver	Free Hanging (In-Line)	Aluminum			IP67 - Dust Tight Waterproof	Male Pins Plug	Shielded	-65 ░C	347 °F	8	13	13
Cinch Connectivity Solutions Trompeter MD801-007-16M8-13SF	F	Electroless Nickel	Coupling Nut	Aerospace Military		5 A	Crimp		Silver	Free Hanging (In-Line)	Aluminum			IP67 - Dust Tight Waterproof	Female Sockets Plug	Shielded	-65 ░C	347 °F	8	13	13
Cinch Connectivity Solutions Trompeter MD801-007-16NF6-7PD	D	Olive Drab Chromate over Cadmium	Coupling Nut	Aerospace Military		5 A	Crimp		Olive Drab	Free Hanging (In-Line)	Aluminum			IP67 - Dust Tight Waterproof	Male Pins Plug	Shielded	-65 ░C	347 °F	6	7	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 146.55
		10	$ 124.58
		25	$ 116.79
		50	$ 111.22

Description

General part information

MD801-007 Series

3 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

No documents available
