M20-9740346

Active

Harwin Inc.

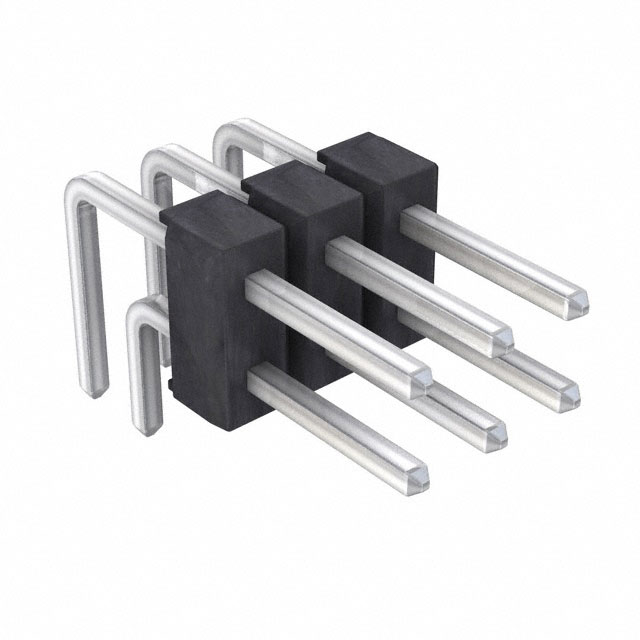

CONN, R/A HEADER, 6POS, 2ROW, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 M20 Series Spec Sheet +1

M20-9740346

Active

Harwin Inc.

CONN, R/A HEADER, 6POS, 2ROW, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 M20 Series Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-9740346

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M20-974 Series

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Material Flammability Rating	Contact Material	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Type	Contact Shape	Number of Positions	Termination	Style	Fastening Type	Insulation Material	Number of Positions Loaded	Shrouding	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Rows	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color
Harwin Inc. M20-9740442	Through Hole Right Angle	-40 °C	105 ░C	Gold	UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	8	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9743646	Through Hole Right Angle	-40 °C	105 ░C		UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	72	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9740346	Through Hole Right Angle	-40 °C	105 ░C		UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	6	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9741242	Through Hole Right Angle	-40 °C	105 ░C	Gold	UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	24	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9741342	Through Hole Right Angle	-40 °C	105 ░C	Gold	UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	26	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9742046	Through Hole Right Angle	-40 °C	105 ░C		UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	40	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9741046	Through Hole Right Angle	-40 °C	105 ░C		UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	20	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9741642	Through Hole Right Angle	-40 °C	105 ░C	Gold	UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square		Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9741746	Through Hole Right Angle	-40 °C	105 ░C		UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	34	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black
Harwin Inc. M20-9740642	Through Hole Right Angle	-40 °C	105 ░C	Gold	UL94 V-0	Brass	0.228 in	5.8 mm	3 A	Male Pin	Square	12	Solder	Board to Board Cable	Push-Pull	Nylon 6T Polyamide (PA6T)	All	Unshrouded	0.1 in	2.54 mm	0.118 in	3 mm	Tin	2	Cuttable Header	2.54 mm	0.1 in	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.20
		10	$ 0.17
		100	$ 0.13
		500	$ 0.11
		1000	$ 0.10
Newark	Each	100	$ 0.15
		500	$ 0.13
		1000	$ 0.12
		2500	$ 0.11
		10000	$ 0.10

Description

General part information

M20-974 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

M20-003

M20 Series Spec Sheet

Datasheet
