Q-3D03Q0008072I

Active

Amphenol Custom Cable

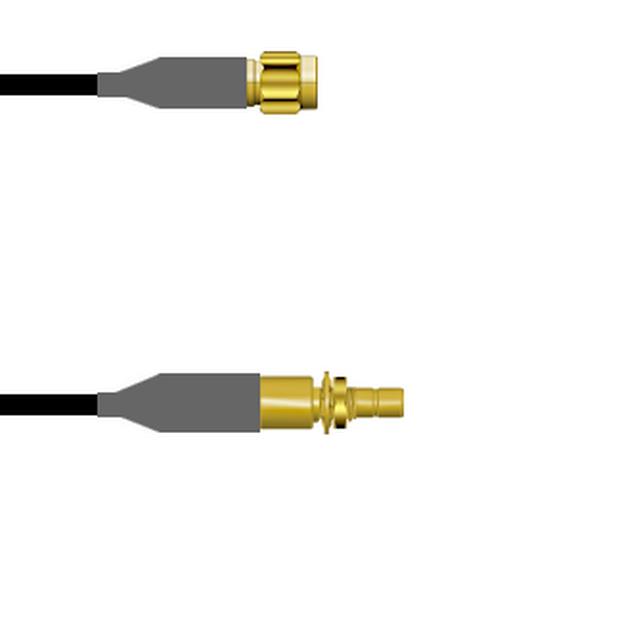

COAX CABLE SMA TO SMB 6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO SMB 6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3D03Q0008072I

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMA to SMB

Part	Features	Frequency - Max [Max]	1st Contact Gender	Style	2nd Contact Gender	Overall Impedance	2nd Connector Mounting Type	2nd Connector	1st Connector	Length	Length	Length	1st Connector Mounting Type	Color	Cable Impedance	Connector Impedance	Cable Type	2nd Connector Mounting Feature
Amphenol Custom Cable Q-3D03Q0008072I	Shielded	1 GHz	Male	SMA to SMB	Male	50 Ohms	Panel Mount	SMB Jack	SMA Plug	6 ft	72 in	1.8 m	Free Hanging (In-Line)	Black	50 Ohms	50 Ohms	RG-58	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMB RG-58 72.0" (1.8m) 6.0'

Technical documentation and resources

No documents available
