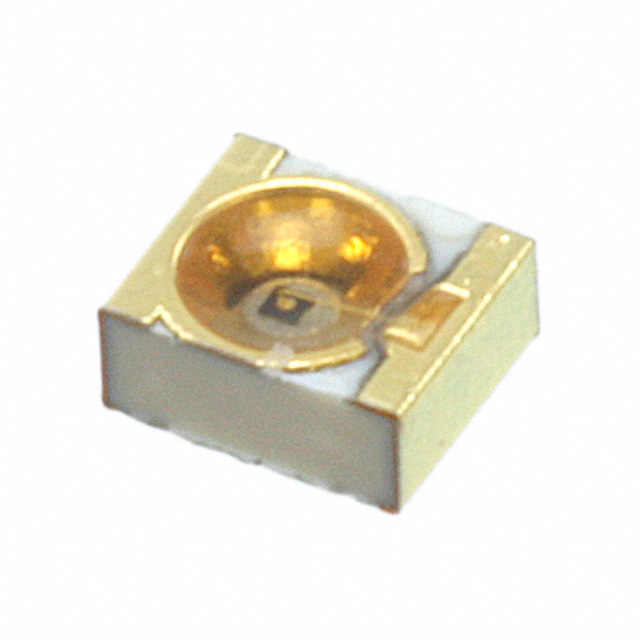

SIM-040ST
ObsoleteRohm Semiconductor
EMITTER IR 870NM 100MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
SIM-040ST
ObsoleteRohm Semiconductor
EMITTER IR 870NM 100MA SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIM-040ST |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If [Min] | 20 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength | 870 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.31 | |
| 10 | $ 1.54 | |||
| 100 | $ 1.19 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 0.92 | |||
| Tape & Reel (TR) | 2000 | $ 0.87 | ||
| 6000 | $ 0.85 | |||
| 10000 | $ 0.84 | |||
Description
General part information
SIM-040 Series
Infrared (IR) Emitter 870nm 1.7V 100mA 20mW/sr @ 100mA 40° 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
