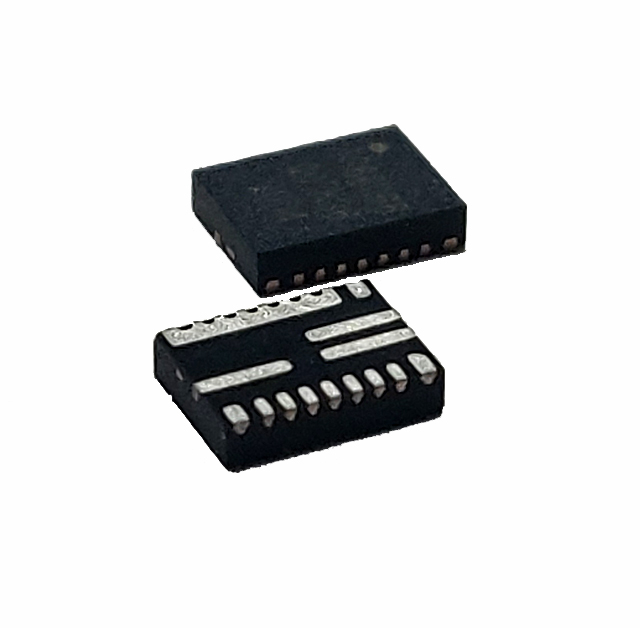

IS66066
ActiveInnovisionsemi
IC REG BUCK ADJ 12A 21QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IS66066
ActiveInnovisionsemi
IC REG BUCK ADJ 12A 21QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IS66066 |
|---|---|
| Current - Output | 12 A |
| Frequency - Switching | Selectable |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Supplier Device Package | 21-QFN (3x4) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 4.8 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.06 | |
| 25 | $ 4.69 | |||
| 50 | $ 4.38 | |||
| 100 | $ 4.06 | |||
| 1000 | $ 3.44 | |||
| 5000 | $ 2.81 | |||
Description
General part information
IS66066 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 21-PowerVFQFN
