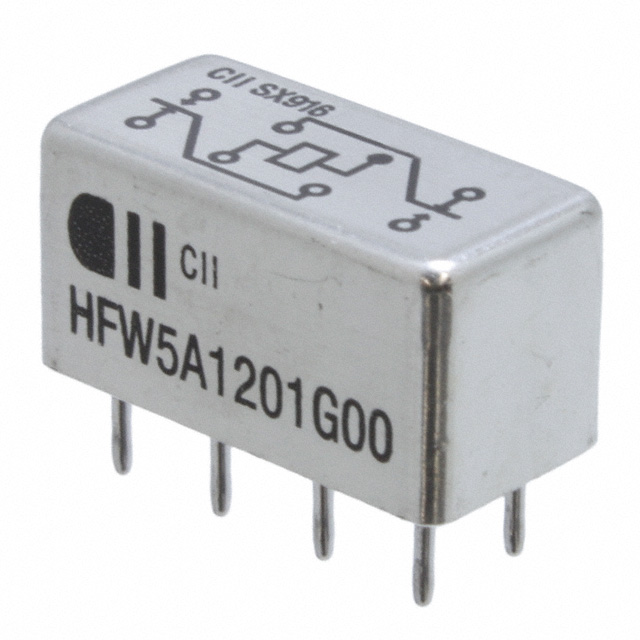

HFW5A1201G00

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 5A 12V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 5A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Mounting Type	Coil Voltage	Contact Rating (Current)	Coil Type	Must Release Voltage	Coil Current	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Seal Rating	Contact Material	Operate Time	Coil Resistance	Must Operate Voltage	Relay Type	Release Time
TE Connectivity Aerospace, Defense and Marine HFW5A1131K00	DPDT (2 Form C)	Through Hole	26.5 VDC	5 A	Non Latching	1.5 VDC	37.9 mA	PC Pin	125 °C	-65 ░C	Sealed - Hermetically	Silver Alloy	4 ms	700 Ohms	13.5 VDC	General Purpose	4 ms
TE Connectivity Aerospace, Defense and Marine HFW5A1201G00	DPDT (2 Form C)	Through Hole	12 VDC	5 A	Non Latching	0.7 VDC	75 mA	PC Pin	125 °C	-65 ░C	Sealed - Hermetically	Silver Alloy	4 ms	160 Ohms	6.4 VDC	General Purpose	4 ms
TE Connectivity Aerospace, Defense and Marine HFW5A1130K00	DPDT (2 Form C)	Through Hole	26.5 VDC	5 A	Non Latching	1.5 VDC	37.9 mA	PC Pin	125 °C	-65 ░C	Sealed - Hermetically	Silver Alloy	4 ms	700 Ohms	13.5 VDC	General Purpose	4 ms
TE Connectivity Aerospace, Defense and Marine HFW5A1230L00	DPDT (2 Form C)	Through Hole	5 VDC	5 A	Non Latching	0.29 VDC	185.2 mA	PC Pin	125 °C	-65 ░C	Sealed - Hermetically	Silver Alloy	4 ms	27 Ohms	2.7 VDC	General Purpose	4 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole

Technical documentation and resources

No documents available
