6GK59240PS001AA2
ActiveSiemens

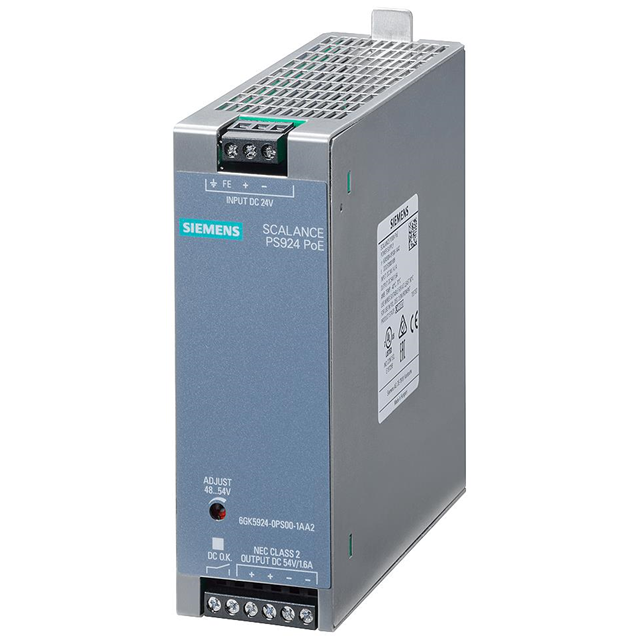

POWER SUPPLY PS924 POE
Deep-Dive with AI
Search across all available documentation for this part.
6GK59240PS001AA2
ActiveSiemens
POWER SUPPLY PS924 POE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK59240PS001AA2 |
|---|---|
| Approval Agency | CE, CSA, cULus, UL |
| Current - Output | 1.6 A |
| Efficiency | 86 % |
| Features | IP20, SCP |
| Mounting Type | DIN Rail |
| Number of Ports | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) - Per Port | 86 W |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [x] | 150 mm |
| Size / Dimension [y] | 483 mm |
| Size / Dimension [y] | 19.02 " |
| Size / Dimension [z] | 43.6 mm |
| Size / Dimension [z] | 1.72 in |
| Standard Number | 60950-1, UL 508 |
| Type | Passive Injector |
| Voltage - Input [Max] | 28.8 V |
| Voltage - Input [Min] | 19.2 V |
| Voltage - Output | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 620.39 | |
Description
General part information
6GK59240 Series
54V Power Over Ethernet (POE) 1 Port Passive Injector Data Rate
