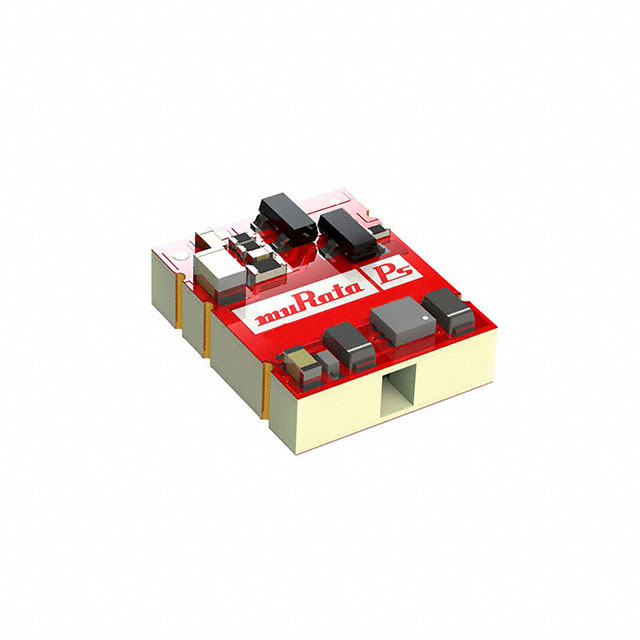

NXE1S0305MC-R7
ActiveMurata Power Solutions Inc.
DC-DC REGULATED POWER SUPPLY MODULE,
Deep-Dive with AI
Search across all available documentation for this part.
NXE1S0305MC-R7
ActiveMurata Power Solutions Inc.
DC-DC REGULATED POWER SUPPLY MODULE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NXE1S0305MC-R7 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 70 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads |
| Package / Case [Max] | 14-SMD Module |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 10.4 mm |
| Size / Dimension [y] | 0.41 in |
| Size / Dimension [z] | 0.18 " |
| Size / Dimension [z] | 4.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 3.63 V |
| Voltage - Input (Min) [Min] | 2.97 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NXE1S03 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 2.97V - 3.63V Input
