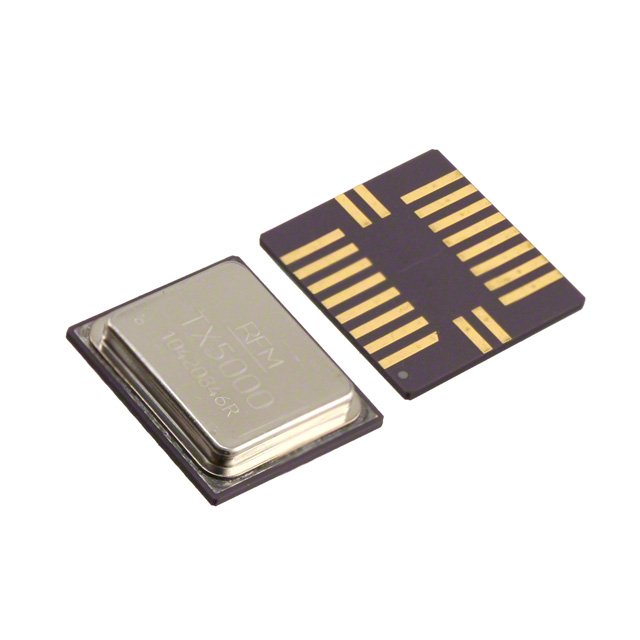

TX5000
ObsoleteMurata Power Solutions Inc.
RF TX IC ASK/OOK 433.92MHZ SM20L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TX5000 |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Applications | General Data Transfer |
| Current - Transmitting | 7.5 mA |
| Data Interface | Surface Mount, PCB |
| Data Rate (Max) [Max] | 115.2 kbps |
| Frequency | 433.92 MHz |
| Modulation or Protocol | ASK, OOK |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-SMD Module, No Lead |
| Power - Output | 0 dBm |
| Supplier Device Package | SM-20L |
| Voltage - Supply [Max] | 3.7 V |
| Voltage - Supply [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TX50 Series
RF Transmitter ASK, OOK 433.92MHz 0dBm 115.2kbps PCB, Surface Mount Antenna 20-SMD Module, No Lead
