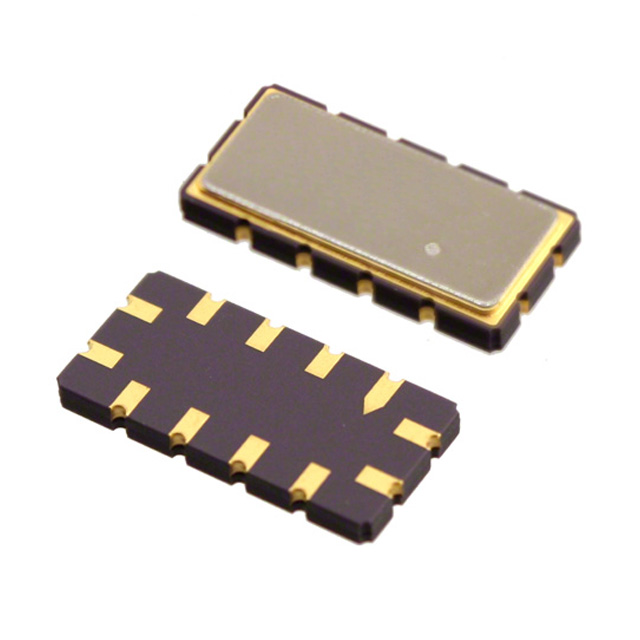

PX1002
ObsoleteMurata Power Solutions Inc.
FILTER SAW 86.85MHZ 12SMD
Deep-Dive with AI
Search across all available documentation for this part.
PX1002
ObsoleteMurata Power Solutions Inc.
FILTER SAW 86.85MHZ 12SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX1002 |
|---|---|
| Applications | TDMA, Cellular |
| Bandwidth | 25 kHz |
| Frequency - Center | 86.85 MHz |
| Height (Max) [Max] | 2 mm |
| Height (Max) [Max] | 0.079 in |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD, No Lead |
| Size / Dimension [x] | 0.524 in |
| Size / Dimension [x] | 13.31 mm |
| Size / Dimension [y] | 0.256 in |
| Size / Dimension [y] | 6.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 13.19 | |
| Tape & Reel (TR) | 500 | $ 6.35 | ||
| 3000 | $ 5.77 | |||
Description
General part information
PX10 Series
86.85MHz Frequency Cellular, TDMA RF SAW Filter (Surface Acoustic Wave) 3dB 25kHz Bandwidth 12-SMD, No Lead
Documents
Technical documentation and resources
No documents available
