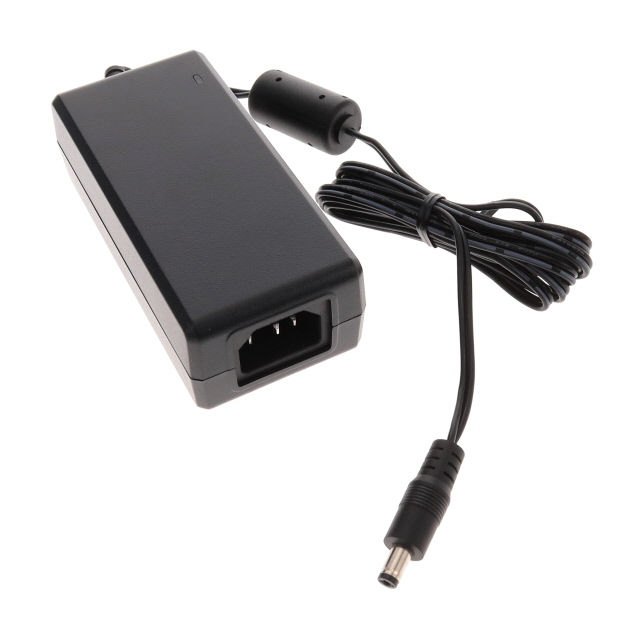

PPL65U-180

Active

Phihong USA

AC/DC DESKTOP ADAPTER 18V 65W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC DESKTOP ADAPTER 18V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	PPL65U-180

Applications	ITE (Commercial)
Approval Agency	IEC, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3.62 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	2.09 "
Size / Dimension [y]	53 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	18 V

Part	Output Connector [z]	Output Connector [diameter]	Output Connector	Efficiency	Operating Temperature [Max]	Current - Output (Max) [Max]	Applications	Form	Standard Number	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	No Load Power Consumption [Max]	Voltage - Output	Approval Agency	Cord Length	Cord Length	Power (Watts)	Polarization
Phihong USA PPL65U-180	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	40 °C	3.62 A	ITE (Commercial)	Desktop (Class I)	62368-1	Cord	90 VAC	264 VAC	International	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	IEC 320-C14	150 mW	18 V	cULus IEC	1.5 m	59 in	65 W	Positive Center
Phihong USA PPL65U-120	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	40 °C	5 A	ITE (Commercial)	Desktop (Class I)	62368-1	Cord	90 VAC	264 VAC	International	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	IEC 320-C14	150 mW	12 V	cULus IEC	1.5 m	59 in	60 W	Positive Center
Phihong USA PPL65U-480	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	40 °C	1.36 A	ITE (Commercial)	Desktop (Class I)	62368-1	Cord	90 VAC	264 VAC	International	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	IEC 320-C14	150 mW	48 V	cULus IEC	1.5 m	59 in	65 W	Positive Center
Phihong USA PPL65U-560	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	40 °C	1.17 A	ITE (Commercial)	Desktop (Class I)	62368-1	Cord	90 VAC	264 VAC	International	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	IEC 320-C14	150 mW	56 V	cULus IEC	1.5 m	59 in		Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
