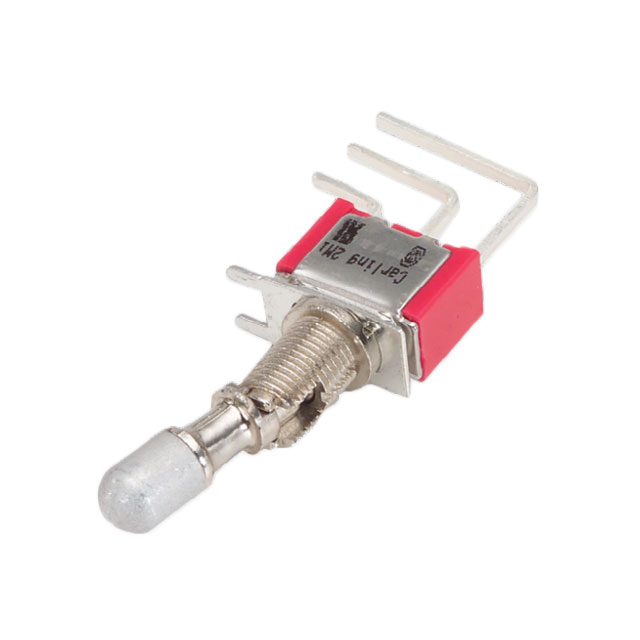

2M1-3P1-T1-B1-M2QE

Active

Carling Technologies

SWITCH TOGGLE 3PDT 5A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE 3PDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	2M1-3P1-T1-B1-M2QE

Actuator Length [z]	10.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	3PDT
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Toggle Switches 2M1HSP1TJBKM1GE

Part	Features	Bushing Thread	Actuator Length [x]	Circuit	Current Rating (Amps)	Switch Function	Termination Style	Voltage Rating - AC	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Ingress Protection	Actuator Material	Electrical Life	Illumination	Mounting Type	Actuator Length [z]
Carling Technologies 2M1-3P1-T1-B1-M1GE	Epoxy Sealed Terminals	1/4-40	10.39 mm	3PDT	5 A	On-On	Solder Lug	125 V	Standard Round	-30 ░C	85 °C	0.25 in	28 V	IP67 - Dust Tight Waterproof	Brass Chrome Plated	50000 Cycles	Non-Illuminated
Carling Technologies 2M1-3P1-T2-B4-M7KE	Epoxy Sealed Terminals	Unthreaded	5.41 mm	3PDT	0.4 VA	On-On	PC Pin	20 V	Standard Round	-30 ░C	85 °C		20 V	IP67 - Dust Tight Waterproof	Brass Chrome Plated	50000 Cycles	Non-Illuminated	Right Angle Through Hole Vertical
Carling Technologies 2M1-3P1-T1-B1-M2QE	Epoxy Sealed Terminals	1/4-40		3PDT	5 A	On-On	PC Pin	125 V	Standard Round	-30 ░C	85 °C	0.25 in	28 V	IP67 - Dust Tight Waterproof	Brass Chrome Plated	50000 Cycles	Non-Illuminated		10.4 mm
Carling Technologies 2M1-3P1-T1-B4-M6GE	Epoxy Sealed Terminals	Unthreaded	10.39 mm	3PDT	5 A	On-On	PC Pin	125 V	Standard Round	-30 ░C	85 °C		28 V	IP67 - Dust Tight Waterproof	Brass Chrome Plated	50000 Cycles	Non-Illuminated	Through Hole Right Angle
