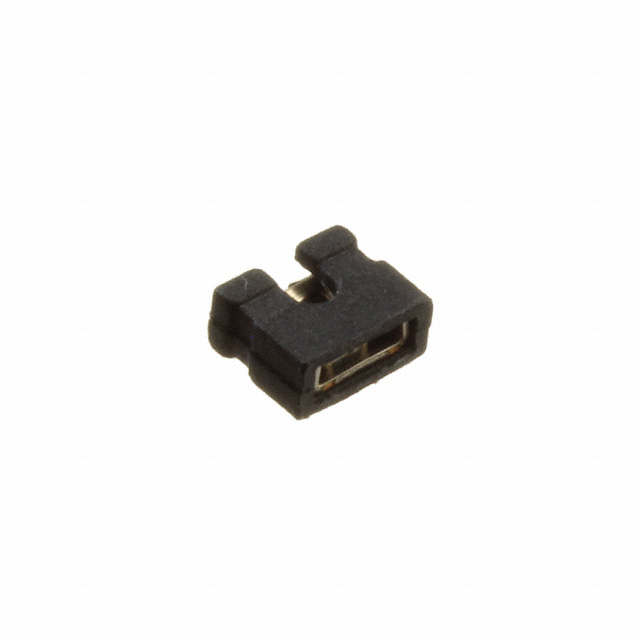

MS2B-G

Active

Adam Tech

CONN MINI SHUNT F 2 POS 2MM ST

Search across all available documentation for this part.

Active

Adam Tech

CONN MINI SHUNT F 2 POS 2MM ST

Technical Specifications

Parameters and characteristics for this part

Specification	MS2B-G

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Gender	Female Sockets
Height [z]	3.5 mm
Height [z]	0.138 in
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Type	Open Top
Voltage Rating	250 VAC

Part	Contact Finish	Housing Material	Pitch [x]	Pitch [x]	Contact Finish Thickness	Height [z]	Height [z]	Type	Color	Gender	Voltage Rating	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Adam Tech MS2B-G	Gold	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	Flash	3.5 mm	0.138 in	Open Top	Black	Female Sockets	250 VAC	UL94 V-0	1 x 2	2
Adam Tech MS2B-T	Tin	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm		3.5 mm	0.138 in	Open Top	Black	Female Sockets	250 VAC	UL94 V-0	1 x 2	2
