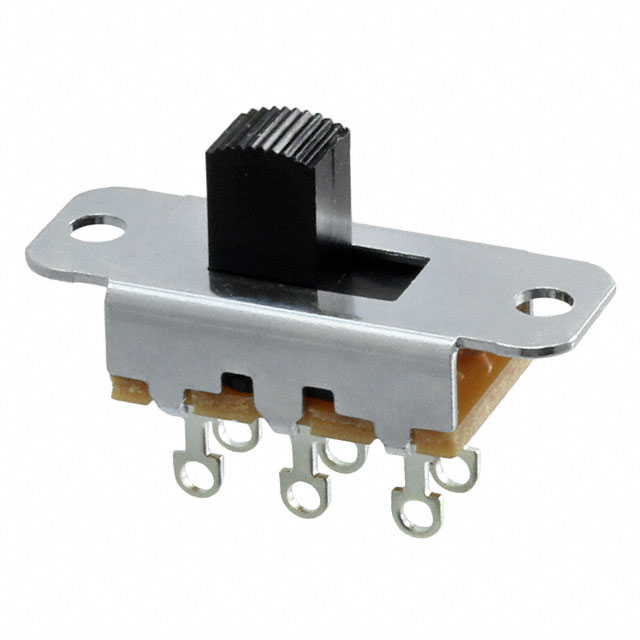

46206LRX
ActiveSwitchcraft Inc.
SWITCH SLIDE DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
46206LRX
ActiveSwitchcraft Inc.
SWITCH SLIDE DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 46206LRX |
|---|---|
| Actuator Length [x] | 8.74 mm |
| Actuator Material | Thermoplastic |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Material | Copper Alloy |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 500 mA, 3 A |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On |
| Switch Travel | 4.78 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.23 | |
| 10 | $ 5.05 | |||
| 25 | $ 4.64 | |||
| 100 | $ 4.07 | |||
| 300 | $ 3.67 | |||
| 500 | $ 3.49 | |||
| 1000 | $ 3.26 | |||
| 2500 | $ 2.97 | |||
Description
General part information
46206L Series
Slide Switch DPDT Panel Mount
