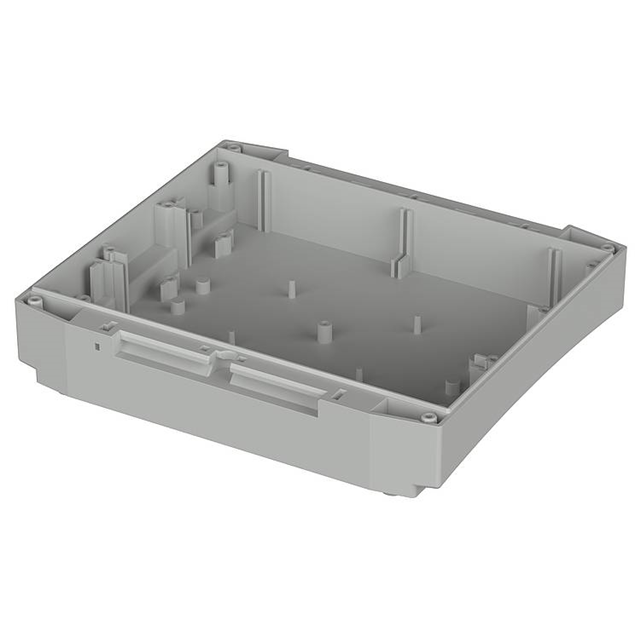

BCD 160 UT-0.5-7035

Active

Bopla Enclosures

BOX ABS GRAY 7.68"L X 6.81"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BCD 160 UT-0.5-7035

Active

Bopla Enclosures

BOX ABS GRAY 7.68"L X 6.81"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BCD 160 UT-0.5-7035

Area (L x W)	337 cm²
Area (L x W)	52.3 in²
Color	Gray
Container Type	Box
Design	Open End(s)
Features	PCB Supports, Card Guides
Height [z]	35 mm
Height [z]	1.378 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	7.677 in
Size / Dimension [x]	195 mm
Size / Dimension [y]	6.811 in
Size / Dimension [y]	173 mm
Thickness	3 mm
Thickness	0.118 in

BCD 160 Series

Part	For Use With/Related Products	Color	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Material	Size / Dimension [y]	Size / Dimension [z]	Features	Thickness	Thickness	Container Type	Height [z]	Height [z]	Material Flammability Rating	Design	Area (L x W)	Area (L x W)
Bopla Enclosures BCD 160 FO-K-7024	BOCARD 160 System	Gray	Frame	0.748 "	178 mm	7.835 "	19 mm	7.008 "	199 mm	Plastic Polycarbonate
Bopla Enclosures BCD 160 OT-G-7024	BOCARD 160 System	Clear Gray Frame	Cover Lid	1.437 "		7.835 "		7.047 in	199 mm	Plastic Polycarbonate	179 mm	36.5 mm	Hinged
Bopla Enclosures BCD 160 OT-G-7035	BOCARD 160 System	Clear Gray Frame	Cover Lid	1.437 "		7.835 "		7.047 in	199 mm	Plastic Polycarbonate	179 mm	36.5 mm	Hinged
Bopla Enclosures BCD 160 UT-0.5-7035		Gray			173 mm	7.677 in		6.811 in	195 mm	Plastic ABS			Card Guides PCB Supports	3 mm	0.118 in	Box	35 mm	1.378 in	UL94 HB	Open End(s)	337 cm²	52.3 in²
Bopla Enclosures BCD 160 UT-7035		Gray			173 mm	7.677 in		6.811 in	195 mm	Plastic ABS			Card Guides PCB Supports	3 mm	0.118 in	Box	70 mm	2.756 "	UL94 HB	Open End(s)	337 cm²	52.3 in²
Bopla Enclosures BCD 160 KRD-7024	BOCARD 160 System	Gray	Cover Lid	0.768 in	44 mm	7.402 "	19.5 mm	1.732 in	188 mm	Plastic Polycarbonate
Bopla Enclosures BCD 160 KRD-7035	BOCARD 160 System	Gray	Cover Lid	0.768 in	44 mm	7.402 "	19.5 mm	1.732 in	188 mm	Plastic Polycarbonate
Bopla Enclosures BCD 160 FO-7035	BOCARD 160 System	Gray	Frame	0.748 "	178 mm	7.835 "	19 mm	7.008 "	199 mm	Plastic Polycarbonate
Bopla Enclosures BCD 160 FO-K-7035	BOCARD 160 System	Gray	Frame	0.748 "	178 mm	7.835 "	19 mm	7.008 "	199 mm	Plastic Polycarbonate
Bopla Enclosures BCD 160 OT-F-7035	BOCARD 160 System	Gray	Cover Lid	0.748 "	178 mm	7.835 "	19 mm	7.008 "	199 mm	Plastic Polycarbonate

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.86

Description

General part information

BCD 160 Series

Box Plastic, ABS Gray Open End(s) 7.677" L x 6.811" W (195.00mm x 173.00mm) X 1.378" (35.00mm)

Documents

Technical documentation and resources
