Q-2O04V000D060i
ActiveAmphenol Custom Cable

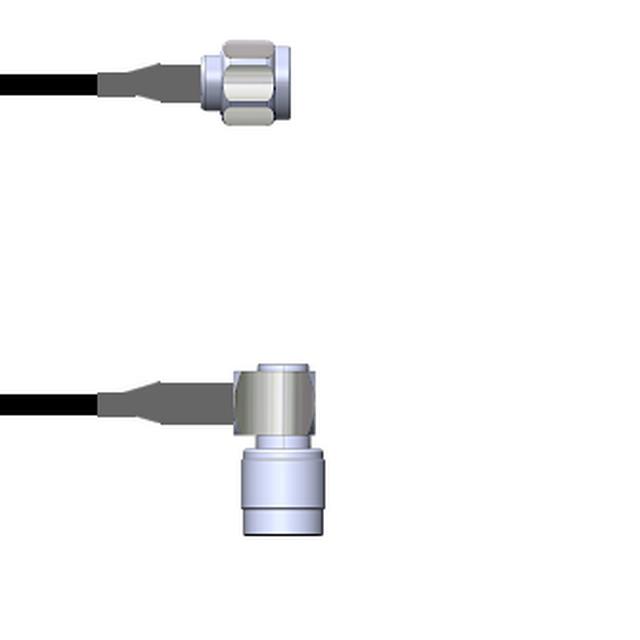

CBL ASSY NTYPE-TNC PLUG-PLUG 5'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2O04V000D060i
ActiveAmphenol Custom Cable
CBL ASSY NTYPE-TNC PLUG-PLUG 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2O04V000D060i |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | LMR 195 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 5 ft |
| Length | 1.5 m |
| Length | 5 ' |
| Overall Impedance | 50 Ohms |
Q-2O04V0 Series
| Part | Length | Length | Length | Features | Frequency - Max [Max] | 2nd Connector Mounting Type | Cable Type | 1st Contact Gender | 2nd Contact Gender | 1st Connector Mounting Type | Overall Impedance | 2nd Connector | Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 1200 mm | 4 ft | 48 in | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | ||
Amphenol Custom Cable | 2.1 m | 7 ft | 84 in | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | ||
Amphenol Custom Cable | 304.8 mm | 12 " | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | |||
Amphenol Custom Cable | 1.5 m | 5 ft | 5 ' | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | ||
Amphenol Custom Cable | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | 9.843 " | 250 mm | |||
Amphenol Custom Cable | 1.5 m | 4.9 ft | 59.1 in | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | ||
Amphenol Custom Cable | 1.8 m | 6 ft | 72 in | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | ||
Amphenol Custom Cable | 2.5 m | 8.2 ' | 98.4 in | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | ||
Amphenol Custom Cable | 152.4 mm | 6 in | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black | |||
Amphenol Custom Cable | 91.44 cm | 36 in | Shielded | 6000 MHz | Free Hanging (In-Line) | LMR 195 | Male | Male | Free Hanging (In-Line) | 50 Ohms | TNC Plug Right Angle | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 80.60 | |
| 25 | $ 79.04 | |||
| 50 | $ 77.48 | |||
| 100 | $ 75.93 | |||
| 250 | $ 74.37 | |||
Description
General part information
Q-2O04V0 Series
Cable Assembly Coaxial N-Type to TNC LMR 195 60.0" (1.5m) 5.0'
Documents
Technical documentation and resources
No documents available
