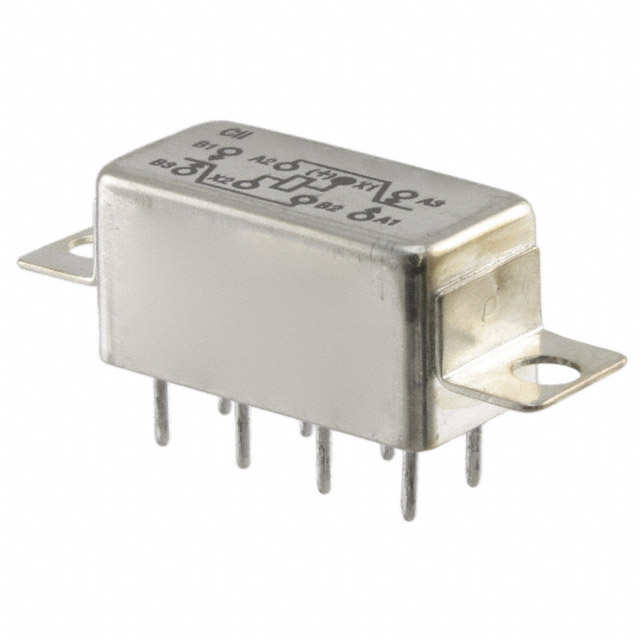

HFW1230K06M
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE DPDT 2A 26.5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HFW1230K06M
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE DPDT 2A 26.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HFW1230K06M |
|---|---|
| Coil Current | 37.9 mA |
| Coil Resistance | 700 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 26.5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Grade | Military |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 13.5 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Qualification | MIL-R-39016/6 |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 28 VDC |
| Termination Style | PC Pin |
1617033 Series
| Part | Coil Type | Coil Resistance | Termination Style | Load - Max Switching | Contact Form | Must Release Voltage | Seal Rating | Contact Rating (Current) | Relay Type | Must Operate Voltage | Switching Voltage | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Mounting Type | Coil Voltage | Coil Current | Contact Material | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | Non Latching | 27 Ohms | PC Pin | 56 W 230 VA | DPDT (2 Form C) | 0.29 VDC | Sealed - Hermetically | 2 A | General Purpose | 2.7 VDC | 28 VDC 115 VAC | 4 ms | 125 °C | -65 ░C | 4 ms | Through Hole | 5 VDC | 185.2 mA | Gold (Au) Silver (Ag) | ||
TE Connectivity Aerospace, Defense and Marine | Non Latching | 700 Ohms | PC Pin | DPDT (2 Form C) | 1.5 VDC | Sealed - Hermetically | 2 A | General Purpose | 13.5 VDC | 4 ms | 125 °C | -65 ░C | 4 ms | Chassis Mount | 26.5 VDC | 37.9 mA | Gold (Au) Silver (Ag) | ||||
TE Connectivity Aerospace, Defense and Marine | Non Latching | 700 Ohms | PC Pin | DPDT (2 Form C) | 1.5 VDC | Sealed - Hermetically | 2 A | General Purpose | 13.5 VDC | 4 ms | 125 °C | -65 ░C | 4 ms | Chassis Mount | 26.5 VDC | 37.9 mA | Gold (Au) Silver (Ag) | ||||
TE Connectivity Aerospace, Defense and Marine | Non Latching | 700 Ohms | PC Pin | DPDT (2 Form C) | 1.5 VDC | Sealed - Hermetically | 2 A | General Purpose | 13.5 VDC | 28 VDC | 4 ms | 125 °C | -65 ░C | 4 ms | Chassis Mount | 26.5 VDC | 37.9 mA | Military | MIL-R-39016/6 | ||
TE Connectivity Aerospace, Defense and Marine | Non Latching | 700 Ohms | PC Pin | 56 W 230 VA | DPDT (2 Form C) | 1.5 VDC | Sealed - Hermetically | 2 A | General Purpose | 13.5 VDC | 28 VDC 115 VAC | 4 ms | 125 °C | -65 ░C | 4 ms | Chassis Mount | 26.5 VDC | 37.9 mA | Gold (Au) Silver (Ag) | ||
TE Connectivity Aerospace, Defense and Marine | Non Latching | 700 Ohms | PC Pin | DPDT (2 Form C) | 1.5 VDC | Sealed - Hermetically | 2 A | General Purpose | 13.5 VDC | 28 VDC 115 VAC | 4 ms | 125 °C | -65 ░C | 4 ms | Chassis Mount | 26.5 VDC | 37.9 mA | Gold (Au) Silver (Ag) | |||
TE Connectivity Aerospace, Defense and Marine | Non Latching | 700 Ohms | PC Pin | DPDT (2 Form C) | 1.5 VDC | Sealed - Hermetically | 2 A | General Purpose | 13.5 VDC | 4 ms | 125 °C | -65 ░C | 4 ms | Chassis Mount | 26.5 VDC | 37.9 mA | Gold (Au) Silver (Ag) | ||||
TE Connectivity Aerospace, Defense and Marine | Non Latching | PC Pin | 56 W 230 VA | DPDT (2 Form C) | Sealed - Hermetically | 2 A | General Purpose | 28 VDC 115 VAC | 4 ms | 125 °C | -65 ░C | 4 ms | Through Hole | Gold (Au) Silver (Ag) | |||||||
TE Connectivity Aerospace, Defense and Marine | Non Latching | 27 Ohms | PC Pin | 56 W 230 VA | DPDT (2 Form C) | 0.29 VDC | Sealed - Hermetically | 2 A | General Purpose | 2.7 VDC | 28 VDC 115 VAC | 4 ms | 125 °C | -65 ░C | 4 ms | Through Hole | 5 VDC | 185.2 mA | Gold (Au) Silver (Ag) | ||
TE Connectivity Aerospace, Defense and Marine | Non Latching | 520 Ohms | PC Pin | DPDT (2 Form C) | 0.95 VDC | Sealed - Hermetically | 2 A | General Purpose | 9.5 VDC | 4 ms | 125 °C | -65 ░C | 4 ms | 18 VDC | 34.6 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 91.63 | |
| 10 | $ 86.81 | |||
| 25 | $ 81.99 | |||
| 50 | $ 77.16 | |||
| 100 | $ 72.34 | |||
Description
General part information
1617033 Series
General Purpose Relay DPDT (2 Form C) Chassis Mount
