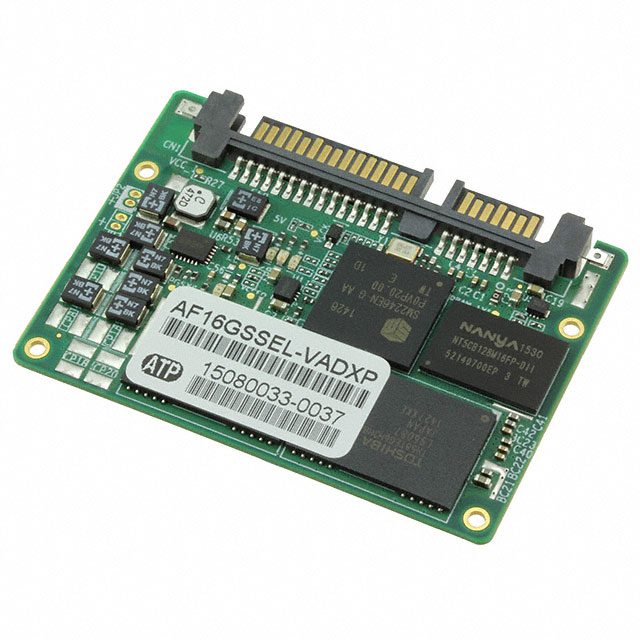

AF16GSSEL-VADXP

Active

ATP Electronics, Inc.

SSD 16GB SLIM-SATA SLC 5V

Search across all available documentation for this part.

Active

ATP Electronics, Inc.

SSD 16GB SLIM-SATA SLC 5V

Technical Specifications

Parameters and characteristics for this part

Specification	AF16GSSEL-VADXP

Form Factor	Slim-SATA
Memory Size	16 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	54 mm
Size / Dimension [y]	39 mm
Size / Dimension [z]	4 mm
Speed - Read	530 MB/s
Speed - Write	430 MB/s
Type	SATA III

Part	Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Memory Type	Speed	Technology	Type	Weight	Weight	Form Factor	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Speed - Read	Speed - Write	Form Factor	Speed
ATP Electronics, Inc. AF16GUD3-WAAXX	16 GB	-25 °C	85 °C	microSD™	Class 10	MLC
ATP Electronics, Inc. AF16GUFP3NC-OEM	16 GB	0 °C	85 °C	FLASH - NAND (MLC)			USB 2.0	8 g	0.282 oz
ATP Electronics, Inc. AF16GSSCD-OEM	16 GB	-40 °C	85 °C	Solid State Drive (SSD) FLASH - NAND (SLC)						2.5 in
ATP Electronics, Inc. AF16GSACD-OEM	16 GB	0 °C	70 °C	Solid State Drive (SSD) FLASH - NAND (MLC)						2.5 in	69.9 mm	100 mm	9.2 mm	250 MB/s	180 MB/s
ATP Electronics, Inc. AF16GCFI-TACXP	16 GB	-40 °C	85 °C	CompactFlash®		SLC
ATP Electronics, Inc. AF16GSMEL-OEM	16 GB	0 °C	70 °C	Solid State Drive (SSD) FLASH - NAND (MLC)			SATA III				39 mm	54 mm	4 mm	530 MB/s	440 MB/s	Slim-SATA
ATP Electronics, Inc. AF16GSDI-OEM	16 GB	-40 °C	85 °C	SDHC™	Class 10	SLC
ATP Electronics, Inc. AF16GUD3-WAAIX	16 GB	-40 °C	85 °C	microSDHC™	Class 10	MLC											UHS Class 1
ATP Electronics, Inc. AF16GSSEL-VADXP	16 GB	-40 °C	85 °C	Solid State Drive (SSD) FLASH - NAND (SLC)			SATA III				39 mm	54 mm	4 mm	530 MB/s	430 MB/s	Slim-SATA
ATP Electronics, Inc. AF16GSAEL-OEM	16 GB	0 °C	70 °C	Solid State Drive (SSD) FLASH - NAND (MLC)							39 mm	54 mm	4 mm	250 MB/s	190 MB/s	Slim-SATA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	64	$ 187.90

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 16GB SATA III Slim-SATA 5V

Technical documentation and resources
