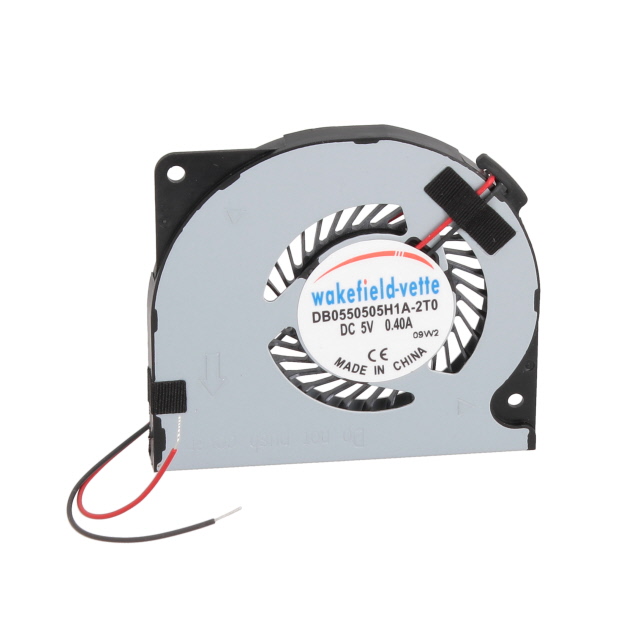

DB0550505H1A-2T0

Active

Wakefield-Vette

FAN BLOWER 49.5X5.25MM 5VDC

Search across all available documentation for this part.

Active

Wakefield-Vette

FAN BLOWER 49.5X5.25MM 5VDC

Technical Specifications

Parameters and characteristics for this part

Specification	DB0550505H1A-2T0

Air Flow	1.3 CFM
Air Flow	0.036 m³/min
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Blower
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Noise	21.2 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	700 mW
RPM	3100 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	55 mm
Size / Dimension [z]	50 mm
Static Pressure	0.149 in H2O
Static Pressure	37.1 Pa
Termination	2 Position Rectangular Connector
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	3.5 VDC
Weight	0.038 lb
Weight	17.24 g
Width [x]	5.25 mm

Part	Air Flow	Air Flow	Width [x]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Termination	Noise	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Static Pressure	Static Pressure	Current Rating (Amps)	Lifetime @ Temp.	RPM	Ingress Protection	Power (Watts)	Voltage - Rated	Weight	Weight
Wakefield-Vette DB0550505H1A-2T0	1.3 CFM	0.036 m³/min	5.25 mm	Ball	70 °C	70 °C	-10 °C	-10 °C	Blower	2 Position Rectangular Connector	21.2 dB(A)	6 VDC	3.5 VDC	50 mm	55 mm	Rectangular/Rounded	0.149 in H2O	37.1 Pa	120 mA	50000 Hrs	3100 RPM	IP55 - Dust Protected Water Resistant	700 mW	5 V	0.038 lb	17.24 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 5VDC Rectangular/Rounded - 55mm L x 50mm H Ball 1.3 CFM (0.036m³/min) 2 Position Rectangular Connector
