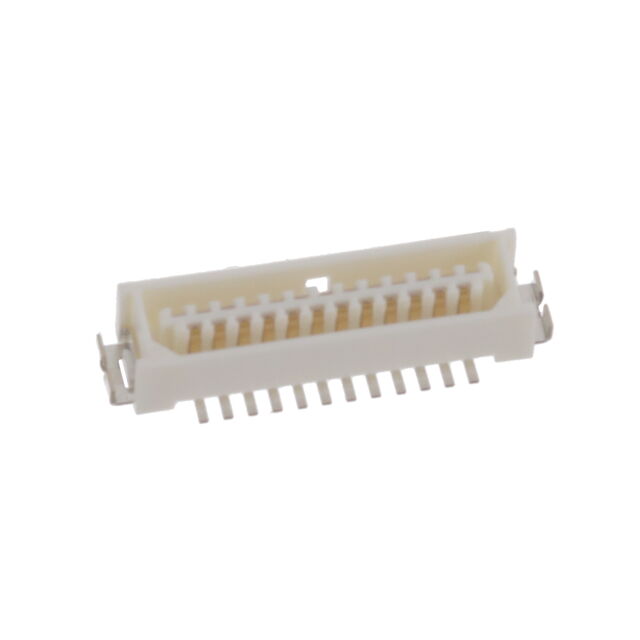

DF9-25P-1V(69)
ActiveHirose Electric USA, Inc.
CONN HDR 25POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF9-25P-1V(69)
ActiveHirose Electric USA, Inc.
CONN HDR 25POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF9-25P-1V(69) |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Solder Retention, Board Guide |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mated Stacking Heights [z] | 4.3 mm |
| Mounting Type | Surface Mount |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.10 | |
| 10 | $ 1.83 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.71 | |||
| 100 | $ 1.63 | |||
| 250 | $ 1.48 | |||
| 500 | $ 1.36 | |||
| Digi-Reel® | 1 | $ 2.10 | ||
| 10 | $ 1.83 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.71 | |||
| 100 | $ 1.63 | |||
| 250 | $ 1.48 | |||
| 500 | $ 1.36 | |||
| Tape & Reel (TR) | 1000 | $ 1.17 | ||
| 2000 | $ 1.13 | |||
| 3000 | $ 1.09 | |||
| 5000 | $ 1.03 | |||
Description
General part information
DF9-25P Series
25 Position Connector Header, Center Strip Contacts Surface Mount Gold
