OSTOQ141551

Active

On Shore Technology Inc.

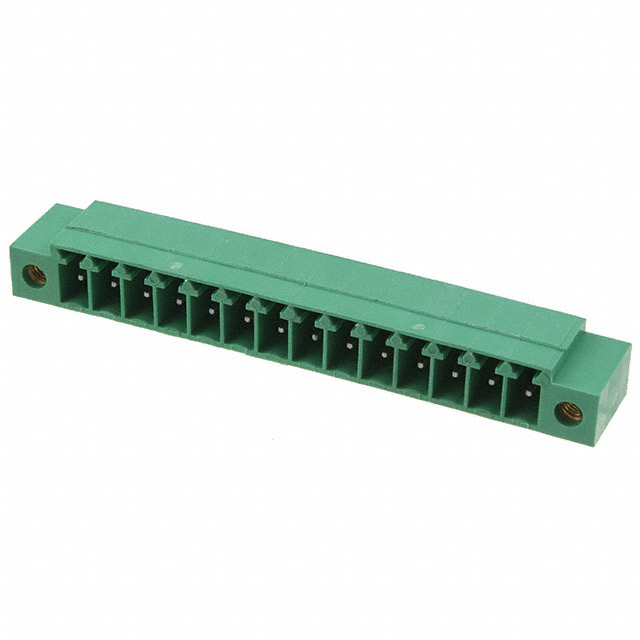

TERM BLOCK HDR 14POS 90DEG 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ141551

Active

On Shore Technology Inc.

TERM BLOCK HDR 14POS 90DEG 3.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ141551

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Features	Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height	3.5 mm
Insulation Height	0.138 in
Material Flammability Rating	UL94 V-0
Mounting Type	Solder
Number of Levels	1
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	14
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ14 Series

Part	Contact Mating Finish	Mounting Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Positions Per Level	Voltage - UL	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Contact Tail Length	Contact Tail Length	Header Orientation	Housing Material	Features	Type	Number of Positions	Contact Material	Insulation Height [custom]	Insulation Height [custom]	Termination Style
On Shore Technology Inc. OSTOQ143551	Tin	Solder	0.15 in	3.81 mm	UL94 V-0	14	300 V	3.5 mm	0.138 in	-30 ░C	105 ░C	1	3.5 mm	0.138 in	90° Right Angle	Thermoplastic	Mating Flange	Header Male Pins Shrouded (4 Side)	14	Brass
On Shore Technology Inc. OSTOQ145451	Tin	Solder	0.2 in	5.08 mm		14	300 V			-40 °C	115 °C	1	4 mm	0.157 in	90° Right Angle	Thermoplastic		Header Male Pins Shrouded (4 Side)	14		0.157 in	4 mm
On Shore Technology Inc. OSTOQ140151	Tin	Solder	0.3 in	7.62 mm		14	300 V			-30 ░C	105 ░C	1	4 mm	0.157 in	90° Right Angle	Thermoplastic		Header Male Pins Shrouded (4 Side)	14	Brass	0.157 in	4 mm
On Shore Technology Inc. OSTOQ140051	Tin	Solder	0.3 in	7.62 mm		14	300 V			-30 ░C	105 ░C	1	4 mm	0.157 in	90° Right Angle	Thermoplastic		Header Male Pins Shrouded (2 Side)	14	Brass	0.157 in	4 mm
On Shore Technology Inc. OSTOQ14B150	Tin	Through Hole	0.098 in	2.5 mm		14	125 V	3.5 mm	0.138 in	-40 °C	115 °C	1	3.5 mm	0.138 in	Vertical	Thermoplastic		Header Male Pins Shrouded (4 Side)	14				Solder
On Shore Technology Inc. OSTOQ143251	Tin	Solder	0.15 in	3.81 mm		14	300 V	3.5 mm	0.138 in	-30 ░C	105 ░C	1	3.5 mm	0.138 in	90° Right Angle	Thermoplastic		Header Male Pins Shrouded (4 Side)	14	Brass
On Shore Technology Inc. OSTOQ145550	Tin	Solder	0.2 in	5.08 mm	UL94 V-0	14	300 V			-30 ░C	105 ░C	1	4 mm	0.157 in	Vertical	Thermoplastic	Mating Flange	Header Male Pins Shrouded (4 Side)	14	Brass	0.157 in	4 mm
On Shore Technology Inc. OSTOQ141551	Tin	Solder	0.138 in	3.5 mm	UL94 V-0	14	300 V	3.5 mm	0.138 in	-30 ░C	105 ░C	1	3.5 mm	0.138 in	90° Right Angle	Thermoplastic	Mating Flange	Header Male Pins Shrouded (4 Side)	14	Brass
On Shore Technology Inc. OSTOQ14A051	Tin	Solder	0.295 in	7.5 mm		14	300 V			-30 ░C	105 ░C	1	4 mm	0.157 in	90° Right Angle	Thermoplastic		Header Male Pins Shrouded (2 Side)	14	Brass	0.157 in	4 mm
On Shore Technology Inc. OSTOQ147051	Tin	Through Hole	0.197 in	5 mm		14	300 V			-30 ░C	105 ░C	1	4 mm	0.157 in	90° Right Angle	Thermoplastic		Header Male Pins Shrouded (2 Side)	14	Brass	0.157 in	4 mm	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	29	$ 2.51

Description

General part information

OSTOQ14 Series

14 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Solder
