R191377000

Active

Radiall USA, Inc.

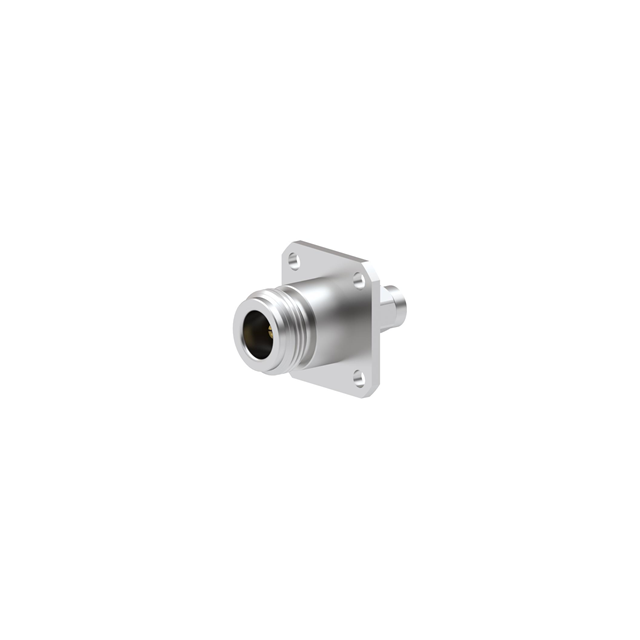

N FEMALE - SMA MALE SQUARE FLANG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N FEMALE - SMA MALE SQUARE FLANG

Technical Specifications

Parameters and characteristics for this part

Specification	R191377000

Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Feature	Flange
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Frequency - Max [Max]	Convert From (Adapter End)	Conversion Type	Impedance	Adapter Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Style	Body Finish	Convert To (Adapter End)	Center Contact Material	Center Contact Plating	Dielectric Material
Radiall USA, Inc. R191377000	11 GHz	SMA Plug Male Pin	Between Series	50 Ohms	Plug to Jack	Flange	155 °C	-55 °C	Brass	Straight	Nickel	Female Socket N Jack	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
