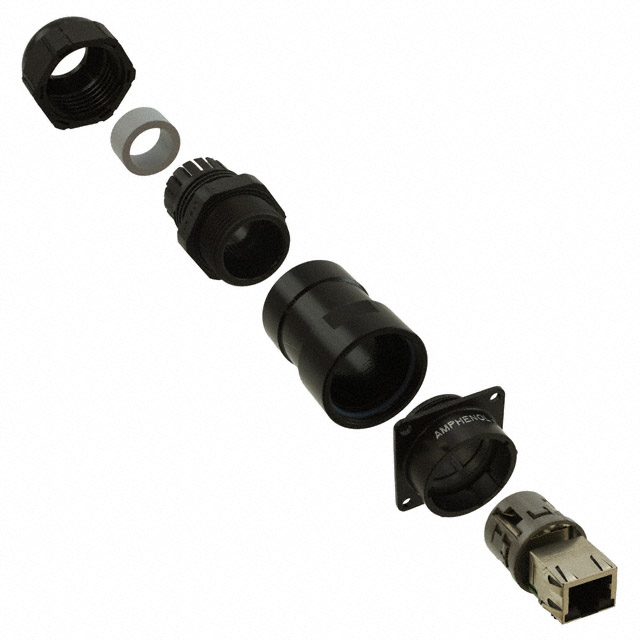

RJF2PEM1B
ActiveAmphenol Socapex
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
Search across all available documentation for this part.
RJF2PEM1B
ActiveAmphenol Socapex
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJF2PEM1B |
|---|---|
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | 8p8c (RJ45), Jack |
| Features | Circular Bayonet Coupling |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Metal Gland |
| Mounting Type | Panel Mount, Square Flange |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat5e |
| Shell Material, Finish | Metal |
| Shielding | Unshielded |
| Type | Coupler |
RJF2PE Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Ratings | Features | Shell Material, Finish | Type | Convert From (Adapter End) | Ingress Protection | Shielding | Convert To (Adapter End) | Mounting Feature | Connector Type | Length [x] | Length [x] | Number of Positions/Contacts | Style | Color | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Socapex | 85 °C | -40 °C | Panel Mount Square Flange | Cat5e | Circular Bayonet Coupling | Nickel Plating | Adapter | Jack 8p8c (RJ45) | IP68 - Dust Tight Waterproof | Shielded | PCB | ||||||||
Amphenol Socapex | 85 °C | -40 °C | Panel Mount Square Flange | Cat5e | Circular Bayonet Coupling | Metal Olive Drab Cadmium Plated | Coupler | Jack 8p8c (RJ45) | IP67 - Dust Tight Waterproof | Unshielded | 8p8c (RJ45) Jack | Metal Gland | |||||||
Amphenol Socapex | 85 °C | -40 °C | Panel Mount Right Angle Square Flange | Cat5e | Circular Bayonet Coupling | Coupler | Jack 8p8c (RJ45) | 8p8c (RJ45) Jack | |||||||||||
Amphenol Socapex | 85 °C | -40 °C | Panel Mount Square Flange | Cat5e | Circular Bayonet Coupling | Metal | Coupler | Jack 8p8c (RJ45) | IP68 - Dust Tight Waterproof | Unshielded | 8p8c (RJ45) Jack | Metal Gland | |||||||
Amphenol Socapex | Flange Panel Mount | Circular Bayonet Coupling Molded Plugs | Shielded | Jack to Plug | 0.98 ft | 300 mm | 8p8c (RJ45 Ethernet) | Cat5e Industrial Environments - IP68 | Gray | Round Cable | |||||||||
Amphenol Socapex | 85 °C | -40 °C | Panel Mount Square Flange | Cat5e | Circular Bayonet Coupling | Metal Nickel Plated | Coupler | Jack 8p8c (RJ45) | IP67 - Dust Tight Waterproof | Unshielded | 8p8c (RJ45) Jack | ||||||||
Amphenol Socapex | 85 °C | -40 °C | Panel Mount Square Flange | Cat5e | Circular Bayonet Coupling | Metal | Coupler | Jack 8p8c (RJ45) | IP67 - Dust Tight Waterproof | Unshielded | 8p8c (RJ45) Jack | ||||||||
Amphenol Socapex | Flange Panel Mount | Circular Bayonet Coupling Molded Plugs | Shielded | Jack to Plug | 1.64 ft | 500 mm | 8p8c (RJ45 Ethernet) | Cat5e Industrial Environments - IP68 | Gray | Round Cable | |||||||||
Amphenol Socapex | 85 °C | -40 °C | Panel Mount Square Flange | Cat5e | Circular Bayonet Coupling | Metal Olive Drab Cadmium Plated | Coupler | Jack 8p8c (RJ45) | IP68 - Dust Tight Waterproof | Unshielded | 8p8c (RJ45) Jack | ||||||||
Amphenol Socapex | 85 °C | -40 °C | Panel Mount Right Angle Square Flange | Cat5e | Circular Bayonet Coupling | Coupler | Jack 8p8c (RJ45) | 8p8c (RJ45) Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 126.38 | |
| 10 | $ 98.52 | |||
| 25 | $ 89.71 | |||
| 50 | $ 83.77 | |||
| 100 | $ 78.40 | |||
Description
General part information
RJF2PE Series
Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
