SC05-11SURKWA

Active

Kingbright

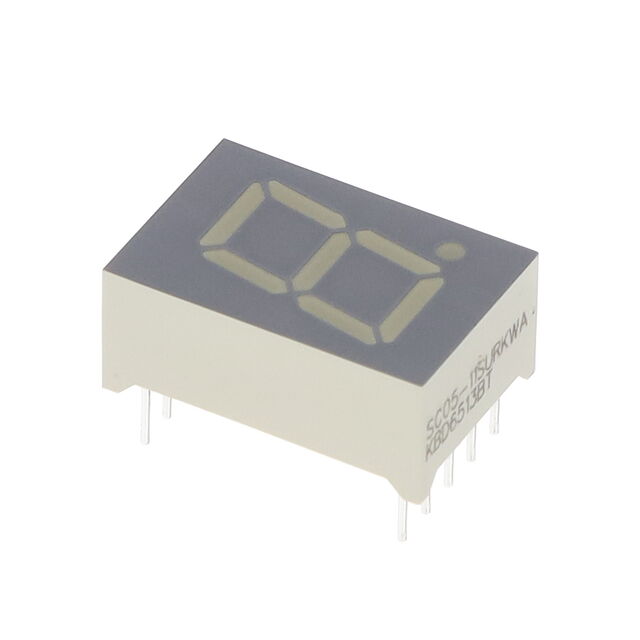

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 12.7MM, ROHS COMPLIANT PACKAGE-10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC05-11SURKWA

Active

Kingbright

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 12.7MM, ROHS COMPLIANT PACKAGE-10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC05-11SURKWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	12.7 mm
Digit/Alpha Size	0.5 in
Display Type	7-Segment
Millicandela Rating	69 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	0.5 in
Size / Dimension [y]	12.7 mm
Size / Dimension [z]	0.315 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

SC05-11 Series

Part	Package / Case	Package / Case	Package / Case	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Millicandela Rating	Display Type	Current - Test	Common Pin	Color	Package / Case [custom]	Wavelength - Peak
Kingbright SC05-11CGKWA	0.6 in	15.24 mm	10-DIP	75 mw	12.7 mm	0.5 in	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	2.1 V	1	34 mcd	7-Segment	20 mA	Common Cathode	Green
Kingbright SC05-11YWA			18-DIP	75 mw	12.7 mm	0.5 in	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	2.1 V	1	6.1 mcd	7-Segment	20 mA	Common Cathode	Yellow	12.7 mm	590 nm
Kingbright SC05-11SRWA			18-DIP	75 mw	12.7 mm	0.5 in	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	1.85 V	1	34 mcd	7-Segment	20 mA	Common Cathode	Red	12.7 mm	660 nm
Kingbright SC05-11SURKWA	0.6 in	15.24 mm	10-DIP	75 mw	12.7 mm	0.5 in	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	1.95 V	1	69 mcd	7-Segment	20 mA	Common Cathode	Red		645 nm
Kingbright SC05-11EWA			18-DIP	75 mw	12.7 mm	0.5 in	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	2 V	1		7-Segment	20 mA	Common Cathode	Red	12.7 mm	627 nm
Kingbright SC05-11SYKWA	0.6 in	15.24 mm	10-DIP	75 mw	12.7 mm	0.5 in	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	2 V	1	120 mcd	7-Segment	20 mA	Common Cathode	Yellow		590 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.18
		40	$ 1.15
		120	$ 1.00
		520	$ 0.86
		1000	$ 0.82
		2000	$ 0.78
		5000	$ 0.74
		10000	$ 0.71

Description

General part information

SC05-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.95V 20mA 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
