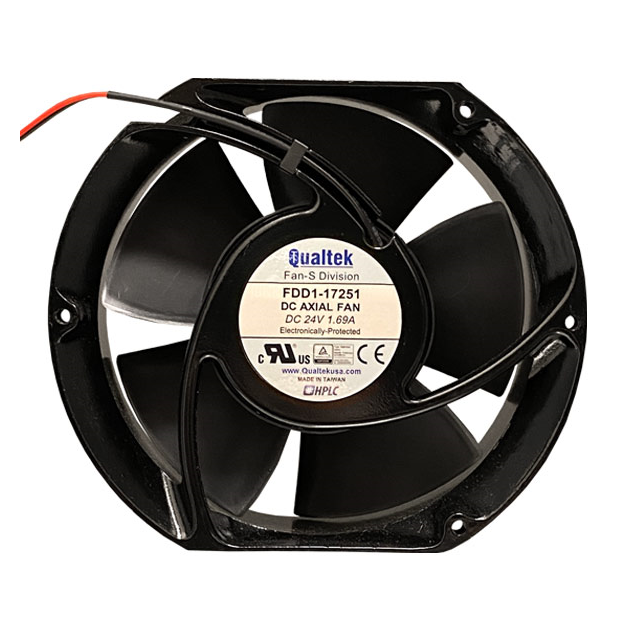

FDD1-17251CBHW32

Active

Qualtek

FAN AXIAL 172X51MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FDD1-17251CBHW32

Active

Qualtek

FAN AXIAL 172X51MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FDD1-17251CBHW32

Air Flow	325 CFM
Air Flow	9.1 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	64 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	44.8 W
RPM	4000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	151 mm
Static Pressure	282.5 Pa
Static Pressure	1.134 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	1 kg
Weight	2.3 lbs
Width [y]	51 mm

FDD1-17251 Series

Part	Current Rating (Amps)	Static Pressure	Static Pressure	Approval Agency	Noise	RPM	Weight	Weight	Air Flow	Air Flow	Termination	Bearing Type	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Frame	Power (Watts)	Material - Blade	Fan Type	Ingress Protection	Lifetime @ Temp.	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Features	Voltage - Rated [custom]
Qualtek FDD1-17251CBMW32-L56	2.75 A	230.4 Pa	0.925 in H2O	CE cURus TUV	60 dB(A)	3600 RPM	2.5 lbs	1.1 kg	8.12 m³/min	290 CFM	2 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	33 W	Plastic	Tubeaxial	IP56M - Dust Protected Water Resistant	100000 Hrs	12 VDC	-20 °C	70 °C	-20 C	70 °C
Qualtek FDD1-17251CBHW32		282.5 Pa	1.134 in H2O	CE cURus TUV	64 dB(A)	4000 RPM	2.3 lbs	1 kg	9.1 m³/min		2 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	44.8 W	Plastic	Tubeaxial		50000 Hrs	12 VDC	-20 °C	70 °C	-20 C	70 °C	325 CFM
Qualtek FDD1-17251DBLW3B-L56	0.89 A	183.3 Pa	0.736 in H2O	CE cURus TUV	56 dB	3200 RPM	2.5 lbs	1.1 kg	7.14 mł/min	255 CFM	4 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	21.4 W	Plastic	Tubeaxial	IP56M - Dust Protected Water Resistant	100000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C		PWM Control Speed Sensor (Tach)
Qualtek FDD1-17251CBHW39		282.5 Pa	1.134 in H2O	CE cURus TUV	64 dB(A)	4000 RPM	2.5 lbs	1.1 kg	9.1 m³/min	325 CFM	3 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	44.8 W	Plastic	Tubeaxial	IP54 - Dust Protected Water Resistant	50000 Hrs	12 VDC	-20 °C	70 °C	-20 C	70 °C		PWM Control
Qualtek FDD1-17251CBLW34-L56	1.88 A	183.3 Pa	0.736 in H2O	CE cURus TUV	56 dB	3200 RPM	2.5 lbs	1.1 kg	7.14 mł/min	255 CFM	3 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	22.6 W	Plastic	Tubeaxial	IP56M - Dust Protected Water Resistant	100000 Hrs	12 VDC	-20 °C	70 °C	-20 C	70 °C		Speed Sensor (Tach)
Qualtek FDD1-17251DBLW34-L56	0.89 A	183.3 Pa	0.736 in H2O	CE cURus TUV	56 dB	3200 RPM	2.5 lbs	1.1 kg	7.14 mł/min	255 CFM	3 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	21.4 W	Plastic	Tubeaxial	IP56M - Dust Protected Water Resistant	100000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C		Speed Sensor (Tach)
Qualtek FDD1-17251EBHW32	0.79 A	282.5 Pa	1.134 in H2O	CE cURus TUV	64 dB(A)	4000 RPM	2.3 lbs	1 kg	9.1 m³/min	325 CFM	2 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	37.9 W	Plastic	Tubeaxial		50000 Hrs		-20 °C	70 °C	-20 C	70 °C			48 VDC
Qualtek FDD1-17251DBMW34	1.21 A	230.4 Pa	0.925 in H2O	CE cURus TUV	60 dB(A)	3600 RPM	2.5 lbs	1.1 kg	8.12 m³/min	290 CFM	3 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	29 W	Plastic	Tubeaxial	IP54 - Dust Protected Water Resistant	50000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C		Speed Sensor (Tach)
Qualtek FDD1-17251CBLW33-L	1.88 A	183.3 Pa	0.736 in H2O	CE cURus TUV	56 dB	3200 RPM	2.5 lbs	1.1 kg	7.14 mł/min	255 CFM	3 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	22.6 W	Plastic	Tubeaxial	IP54 - Dust Protected Water Resistant	100000 Hrs	12 VDC	-20 °C	70 °C	-20 C	70 °C		Locked Rotor Sensor
Qualtek FDD1-17251DBMW32	1.21 A	230.4 Pa	0.925 in H2O	CE cURus TUV	60 dB(A)	3600 RPM	2.5 lbs	1.1 kg	8.12 m³/min	290 CFM	2 Wire Leads	Ball	51 mm	151 mm	Rectangular/Rounded	172 mm	Aluminum	29 W	Plastic	Tubeaxial	IP54 - Dust Protected Water Resistant	50000 Hrs	24 VDC	-20 °C	70 °C	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 92.68
		12	$ 83.30
		36	$ 82.13
		60	$ 76.85
		108	$ 75.09

Description

General part information

FDD1-17251 Series

Fan Tubeaxial 12VDC Rectangular/Rounded - 172mm L x 151mm H Ball 325.0 CFM (9.10mł/min) 2 Wire Leads
