857-018-522-208
ActiveEDAC Inc.

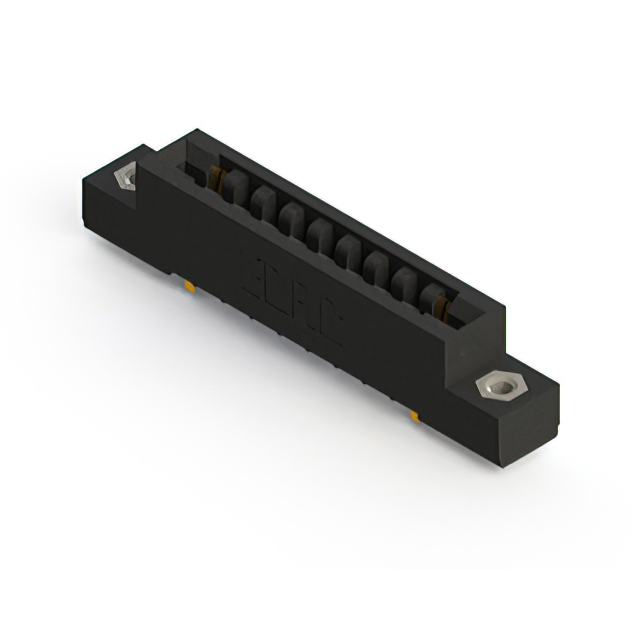

CONN EDGE DUAL FMALE 18POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-018-522-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 18POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-018-522-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
857-018 Series
...
| Part | Mounting Type | Number of Positions | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Termination Rows | Card Type | Gender | Pitch [x] | Pitch [x] | Contact Material | Color | Read Out | Number of Rows | Contact Finish | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 18 | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Wire Wrap | 1 | Non Specified - Single Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Single | 1 | Gold | ||
EDAC Inc. | Through Hole | 18 | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder | 1 | Non Specified - Single Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Single | 1 | Gold | ||
EDAC Inc. | Through Hole Right Angle | 18 | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder | 2 | Non Specified - Dual Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Single | 2 | Tin | ||||||
EDAC Inc. | Through Hole | 36 | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder Eyelet(s) | 1 | Non Specified - Dual Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Dual | 2 | Tin | ||||
EDAC Inc. | Through Hole | 36 | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder Eyelet(s) | 1 | Non Specified - Dual Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Dual | 2 | Tin | ||||
EDAC Inc. | Through Hole | 18 | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder Eyelet(s) | 2 | Non Specified - Dual Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Dual | 2 | Tin | ||||
EDAC Inc. | Through Hole | 18 | Semi Bellows | Side Mount Opening Unthreaded | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder | 2 | Non Specified - Dual Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Dual | 2 | Gold | 3.25 mm | 0.128 in | ||
EDAC Inc. | Through Hole | 18 | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder | 2 | Non Specified - Dual Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Dual | 2 | Gold | ||||
EDAC Inc. | Through Hole | 18 | Semi Bellows | 9 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder | 2 | Non Specified - Dual Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Dual | 2 | Tin | |||||||
EDAC Inc. | Through Hole | 18 | Semi Bellows | Side Mount Opening Unthreaded | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Solder | 1 | Non Specified - Single Edge | Female | 0.156 in | 3.96 mm | Copper Alloy | Black | Single | 1 | Tin | 3.25 mm | 0.128 in |
