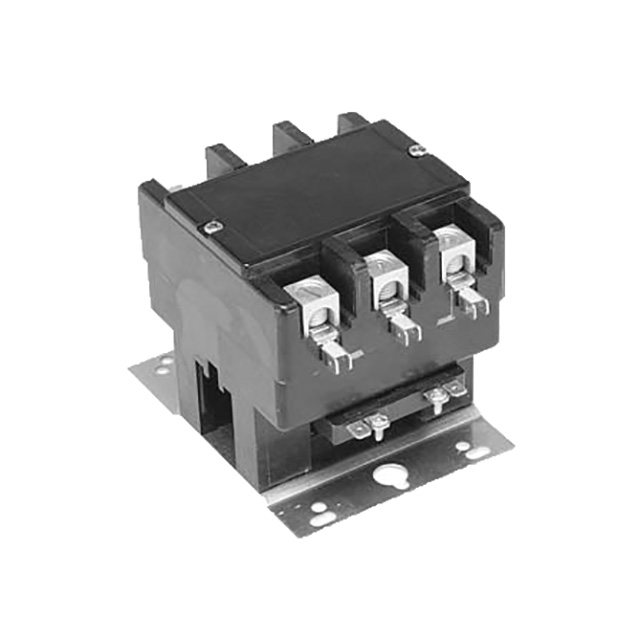

3186Y30K75999CJ

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 3PST 75A 240V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 3PST 75A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	3186Y30K75999CJ

Coil Power	27 VA
Coil Resistance	63.5 Ohms
Coil Voltage	240 VAC
Contact Form	DM
Contact Form	3PST-NO
Contact Form	3 Form X
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	75 A
Features	Insulation - Class B
Mounting Type	Chassis Mount
Must Operate Voltage	177 VAC
Must Release Voltage	40 VAC
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Switching Voltage	600 VAC
Termination Style	Screw Terminal, Quick Connect
Termination Style	0.25 in

Part	Must Operate Voltage	Contact Form	Contact Form	Contact Form	Termination Style	Termination Style	Contact Rating (Current)	Features	Mounting Type	Switching Voltage	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Coil Power	Must Release Voltage	Coil Voltage
TE Connectivity Potter & Brumfield Relays 3186Y30K75999CJ	177 VAC	DM	3PST-NO	3 Form X	Quick Connect Screw Terminal	0.25 in	75 A	Insulation - Class B	Chassis Mount	600 VAC	Silver Cadmium Oxide (AgCdO)	65 °C	-40 °C	63.5 Ohms	27 VA	40 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 456.41

General part information

RELAY CONTACTOR 3PST 75A 240V
