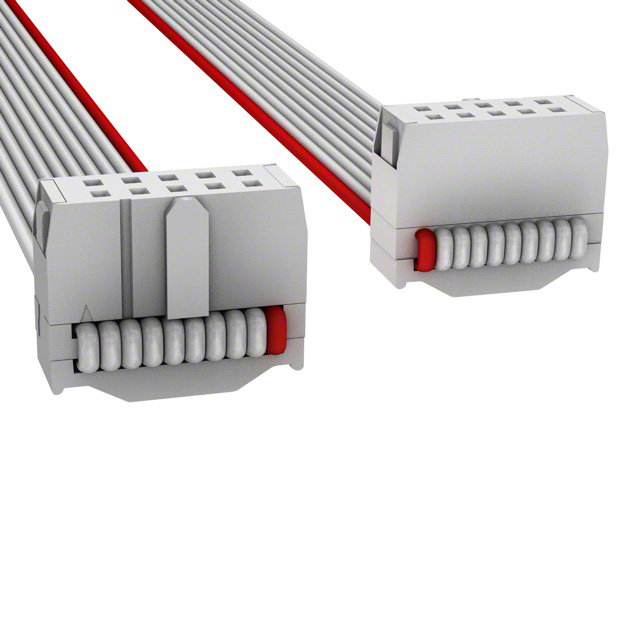

H3DDS-1018G

Active

Assmann WSW Components

IDC CBL - HHKR10S/AE10G/HHKR10S

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR10S/AE10G/HHKR10S

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDS-1018G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Tin
Features	Polarizing Key, Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Features	Connector Type	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish	Cable Termination	Number of Positions	Number of Rows	Length [x]	Length [x]	Color
Assmann WSW Components H3DDS-1018G	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Tin	IDC	10	2	457.2 mm	1.5 ft
Assmann WSW Components H3DDS-1036G	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Tin	IDC	10	2	914.4 mm	3 ft
Assmann WSW Components H3DDS-1036M	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	Tin	IDC	10	2	914.4 mm	3 ft	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
