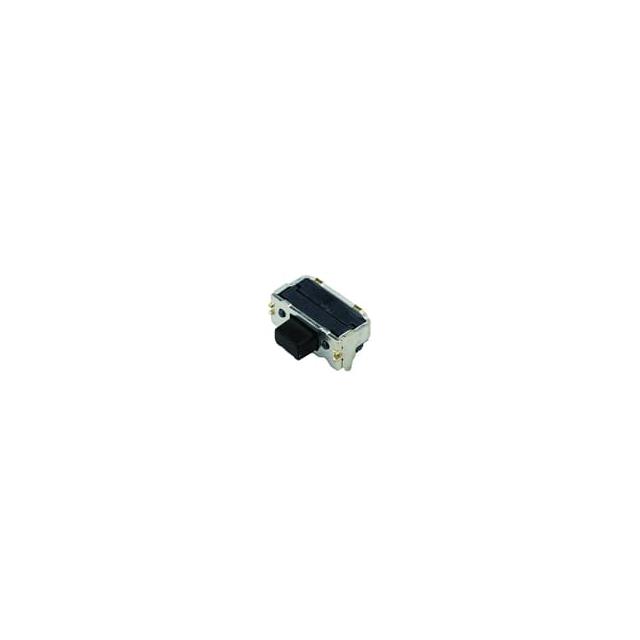

SKTDLDE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKTDLDE010

Actuator Length, Right Angle [x]	2.9 mm
Actuator Orientation	Side Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount, Right Angle
Operating Force	163 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Outline [x]	3.9 mm
Outline [y]	1.95 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	Gull Wing

Part	Circuit	Outline [y]	Outline [x]	Contact Rating @ Voltage	Actuator Length, Right Angle [x]	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Operating Force	Mechanical Life	Actuator Type	Illumination	Termination Style	Mounting Type	Switch Function
Alps Alpine SKTDLDE010	SPST-NO	1.95 mm	3.9 mm	0.05 A 12 VDC	2.9 mm	Side Actuated	-30 ░C	85 °C	0.15 mm	163 gf	200000 Cycles	Rectangular Button	Non-Illuminated	Gull Wing	Surface Mount Right Angle	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
