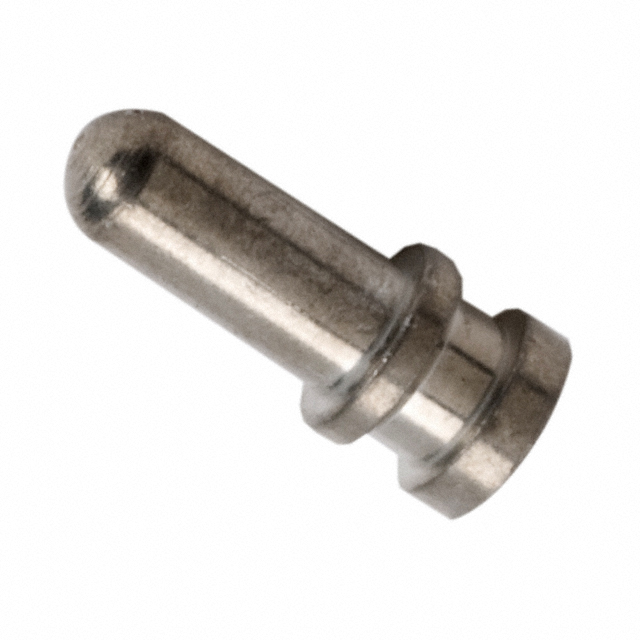

H3155-01

Active

Harwin Inc.

SUB-MINIATURE SOCKET, 1POS, SOLDER

Search across all available documentation for this part.

Active

Harwin Inc.

SUB-MINIATURE SOCKET, 1POS, SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	H3155-01

Accepts Pin Diameter [Max]	0.51 mm
Accepts Pin Diameter [Max]	0.02 in
Accepts Pin Diameter [Min]	0.46 mm
Accepts Pin Diameter [Min]	0.018 in
Contact Finish	Gold
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.45 mm
Flange Diameter [diameter]	0.057 in
Insertion Force [Max]	6 N
Insertion Force [Min]	2 N
Length - Overall [x]	0.142 in
Length - Overall [x]	3.61 mm
Mounting Hole Diameter [Max] [diameter]	1.09 mm
Mounting Hole Diameter [Max] [diameter]	0.043 in
Mounting Hole Diameter [Min] [diameter]	0.039 in
Mounting Hole Diameter [Min] [diameter]	0.99 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth [z]	3.15 mm
Socket Depth [z]	0.124 "
Tail Type	No Tail
Termination	Solder

Part	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Insertion Force [Min]	Insertion Force [Max]	Termination	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Socket Depth [z]	Socket Depth [z]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Finish
Harwin Inc. H3155-01	0.46 mm	0.51 mm	0.018 in	0.02 in	2 N	6 N	Solder	0.039 in	0.99 mm	1.09 mm	0.043 in	3.15 mm	0.124 "	-55 °C	125 °C	Beryllium Copper	1.45 mm	0.057 in	No Tail	0.142 in	3.61 mm	Gold
