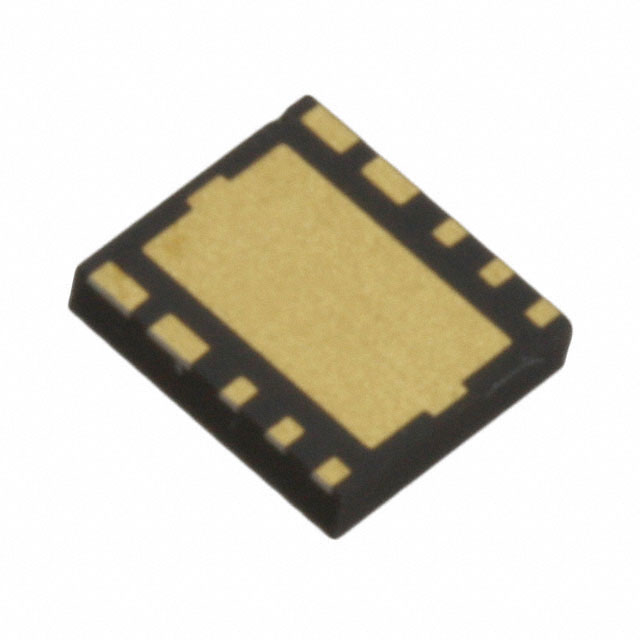

XC9223B081DR-G
ActiveTorex Semiconductor Ltd
IC REG BUCK ADJ 1A 10USPB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC9223B081DR-G
ActiveTorex Semiconductor Ltd
IC REG BUCK ADJ 1A 10USPB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC9223B081DR-G |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 1 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 10-PowerUDFN |
| Supplier Device Package | 10-USPB (2.9x2.6) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Min/Fixed) | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.20 | |
| 6000 | $ 1.16 | |||
Description
General part information
XC9223 Series
Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 1A 10-PowerUDFN
