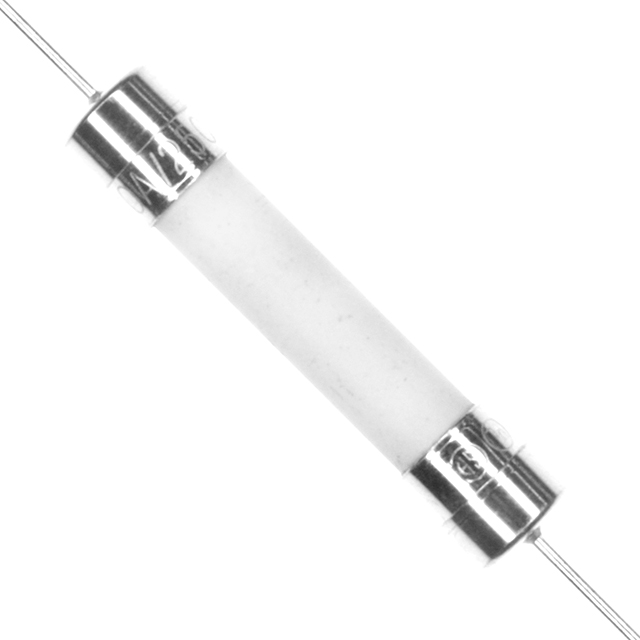

0325.400HXP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, CARTRIDGE, SLOW BLOW, 400 MA, 250 V, 6.3MM X 32MM, 1/4" X 1-1/4", SLO-BLO 325 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
0325.400HXP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, CARTRIDGE, SLOW BLOW, 400 MA, 250 V, 6.3MM X 32MM, 1/4" X 1-1/4", SLO-BLO 325 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0325.400HXP |
|---|---|
| Approval Agency | UL, CSA, CE |
| Breaking Capacity @ Rated Voltage | 100 A, 10 kA |
| Current Rating (Amps) | 400 mA |
| DC Cold Resistance | 1.935 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I˛t | 1.33 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3AG, 3AB |
| Package / Case [x] | 1/4 |
| Package / Case [y] | 1-1/4 |
| Response Time | Slow Blow |
| Size / Dimension | 32.72 mm, 6.99 mm |
| Size / Dimension [diameter] | 0.275 " |
| Size / Dimension [x] | 1.288 " |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0325.400 Series
The 3AB Slo-Blo® Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
