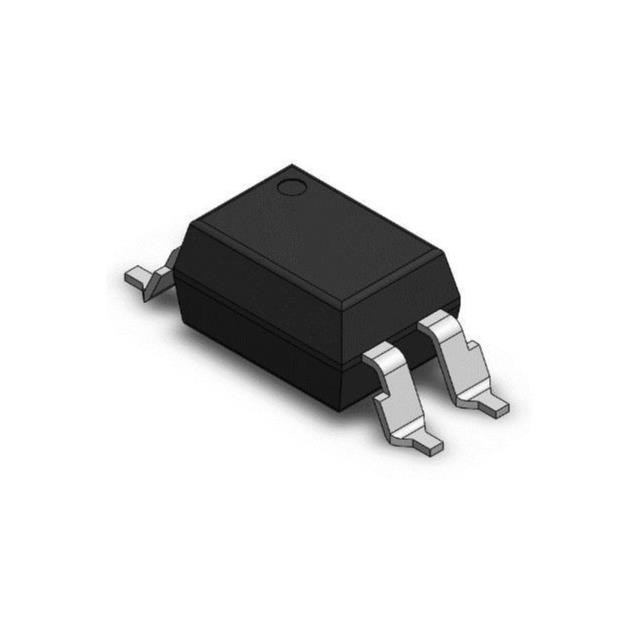

APC-817A1-SL

Active

American Bright Optoelectronics Corporation

OPTOISOLATOR 5KV 1CH TRANS 4SMD

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

OPTOISOLATOR 5KV 1CH TRANS 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	APC-817A1-SL

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max) [Max]	160 %
Current Transfer Ratio (Min) [Min]	80 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	4-SMD
Vce Saturation (Max)	200 mV
Voltage - Forward (Vf) (Typ)	1.24 V
Voltage - Output (Max) [Max]	35 V

Part	Voltage - Forward (Vf) (Typ)	Package / Case	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels	Supplier Device Package	Output Type	Voltage - Output (Max) [Max]	Current Transfer Ratio (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Vce Saturation (Max)	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Current - Output / Channel	Current Transfer Ratio (Max)
American Bright Optoelectronics Corporation APC-817A1-SL	1.24 V	4-SMD Gull Wing	DC	3 µs	4 µs	1	4-SMD	1.81 mOhm	35 V	160 %	Surface Mount	-55 °C	110 °C	200 mV	60 mA	80 %	50 mA
American Bright Optoelectronics Corporation APC-817D1-SL	1.24 V	4-SMD Gull Wing	DC	3 µs	4 µs	1	4-SMD	1.81 mOhm	35 V	600 %	Surface Mount	-55 °C	110 °C	200 mV	60 mA	300 %	50 mA
American Bright Optoelectronics Corporation APC-817C1-SL	1.24 V	4-SMD Gull Wing	DC	3 µs	4 µs	1	4-SMD	1.81 mOhm	35 V		Surface Mount	-55 °C	110 °C	200 mV	60 mA	200 %	50 mA	400 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
