1422-P24-07-2.00
Active3M (TC)
CABLE SFP28 M-M 2M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1422-P24-07-2.00
Active3M (TC)
CABLE SFP28 M-M 2M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422-P24-07-2.00 |
|---|---|
| Cable Connectors | SFP28 |
| Cable Type | Twin Axial, Flat |
| Color | Black |
| Connector Type | Plug to Plug |
| Fastening Type | Push-Pull, Latch Lock |
| Features | Pull Tab |
| Frequency - Max [Max] | 25 Gbps |
| Gender | Male to Male |
| Length [x] | 2 m |
| Length [x] | 6.56 ft |
| Number of Positions | 20 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Shielding | Shielded |
| Usage | External |
| Wire Gauge | 30 AWG |
1422 Series
| Part | Cable Connectors | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Fastening Type | Features | Number of Positions | Usage | Length [x] | Length [x] | For Use With/Related Products | Specifications | Specifications [diameter] | Type | Accessory Type | Wire Gauge | Frequency - Max [Max] | Color | Shielding | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | SFP28 | Male to Male | 70 °C | 0 °C | Plug to Plug | Latch Lock Push-Pull | Pull Tab | 20 | External | 1 m | 3.28 ft | ||||||||||
3M (TC) | Cables Pipes Utilities Locators | Red | 4 in | Utilities Locator | Ball Locator Marker | ||||||||||||||||
3M (TC) | SFP28 | Male to Male | 70 °C | 0 °C | Plug to Plug | Latch Lock Push-Pull | Pull Tab | 20 | External | 3 m | 9.84 ft | ||||||||||
3M (TC) | SFP28 | Male to Male | 70 °C | 0 °C | Plug to Plug | Latch Lock Push-Pull | Pull Tab | 20 | External | 500 mm | 1.64 ft | 30 AWG | 25 Gbps | Black | Shielded | Flat Twin Axial | |||||
3M (TC) | SFP28 | Male to Male | 70 °C | 0 °C | Plug to Plug | Latch Lock Push-Pull | Pull Tab | 20 | External | 2 m | 6.56 ft | 30 AWG | 25 Gbps | Black | Shielded | Flat Twin Axial | |||||
3M (TC) | SFP28 | Male to Male | 70 °C | 0 °C | Plug to Plug | Latch Lock Push-Pull | Pull Tab | 20 | External | 4 m | 13.12 ft | 26 AWG | 25 Gbps | Black | Shielded | Flat Twin Axial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 120 | $ 61.88 | |
Description
General part information
1422 Series

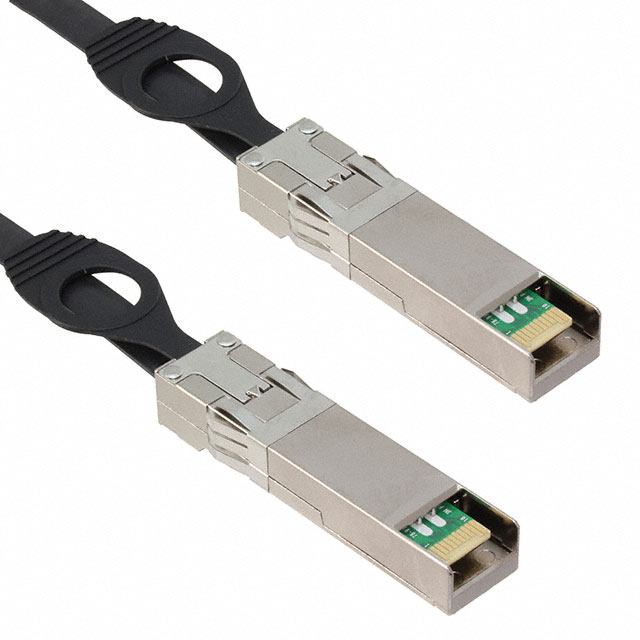

20 Position SFP28 Plug to Plug 6.56' (2.00m) Black Shielded
