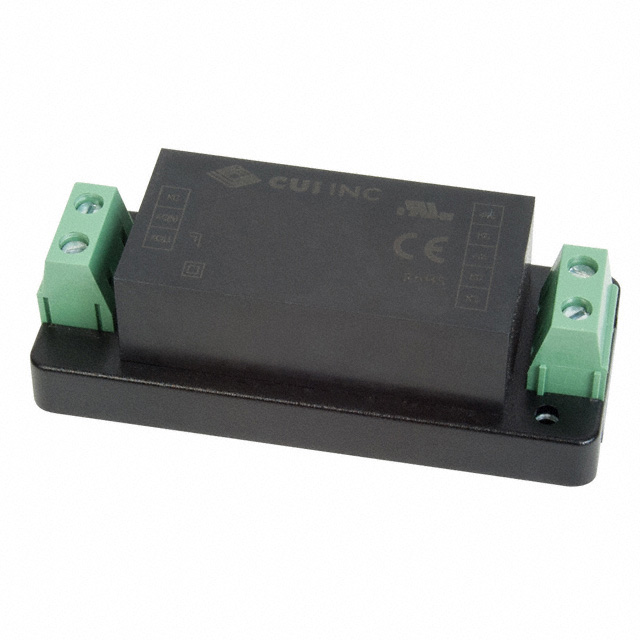

VSK-S5-15UA-T

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 5W

Deep-Dive with AI

Search across all available documentation for this part.

VSK-S5-15UA-T

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 5W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VSK-S5-15UA-T

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	333 mA
Efficiency	76 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	5 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	23.4 mm
Size / Dimension [z]	0.94 in
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

VSK-S5 Series

Part	Standard Number	Package / Case	Applications	Power (Watts)	Weight	Weight	Line Regulation	Load Regulation	Number of Outputs	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Output 1	Efficiency	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current - Output 1	Voltage - Isolation	Current - Output (Max)
CUI Inc. VSK-S5-9UA	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	4-DIP Module	ITE (Commercial)	5 W	34.93 g	0.077 lb	0.5 %	1 %	1	Through Hole	Enclosed	550 mA	9 V	74 %	CB Scheme EN IEC UL	2 in	0.62 in	15.7 mm	25.4 mm	50.8 mm	25.4 mm	-25 °C	70 °C	Universal Input
CUI Inc. VSK-S5-24UA	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	4-DIP Module	ITE (Commercial)	5 W	34.93 g	0.077 lb	0.5 %	1 %	1	Through Hole	Enclosed	230 mA	24 V	78 %	CB Scheme EN IEC UL	2 in	0.62 in	15.7 mm	25.4 mm	50.8 mm	25.4 mm	-25 °C	70 °C	Universal Input
CUI Inc. VSK-S5-12UA	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	4-DIP Module	ITE (Commercial)	5 W	34.93 g	0.077 lb	0.5 %	1 %	1	Through Hole	Enclosed	420 mA	12 V	76 %	CB Scheme EN IEC UL	2 in	0.62 in	15.7 mm	25.4 mm	50.8 mm	25.4 mm	-25 °C	70 °C	Universal Input
CUI Inc. VSK-S5-5UA	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	4-DIP Module	ITE (Commercial)	5 W	34.93 g	0.077 lb	0.5 %	1 %	1	Through Hole	Enclosed	1 A	5 V	72 %	CB Scheme EN IEC UL	2 in	0.62 in	15.7 mm	25.4 mm	50.8 mm	25.4 mm	-25 °C	70 °C	Universal Input
CUI Inc. VSK-S5-15UA-T			ITE (Commercial)	5 W					1	Chassis Mount	Enclosed		15 V	76 %	CE cURus	2.99 in	0.94 in	23.4 mm	31.5 mm	76 mm	1.24 in	-25 °C	70 °C	Universal Input	333 mA	4000 V
CUI Inc. VSK-S5-5UA-T			ITE (Commercial)	5 W					1	Chassis Mount	Enclosed		5 V	72 %	CE cURus	2.99 in	0.94 in	23.4 mm	31.5 mm	76 mm	1.24 in	-25 °C	70 °C	Universal Input	1 A	4000 V
CUI Inc. VSK-S5-9UA-T			ITE (Commercial)	5 W					1	Chassis Mount	Enclosed		9 V	74 %	CE cURus	2.99 in	0.94 in	23.4 mm	31.5 mm	76 mm	1.24 in	-25 °C	70 °C	Universal Input	550 mA	4000 V
CUI Inc. VSK-S5-3R3UA	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	4-DIP Module	ITE (Commercial)	5 W	34.93 g	0.077 lb	0.5 %	1 %	1	Through Hole	Enclosed	1.25 A	3.3 V	66 %	CB Scheme EN IEC UL	2 in	0.62 in	15.7 mm	25.4 mm	50.8 mm	25.4 mm	-25 °C	70 °C	Universal Input
CUI Inc. VSK-S5-15UA	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	4-DIP Module	ITE (Commercial)	5 W	34.93 g	0.077 lb	0.5 %	1 %	1	Through Hole	Enclosed		15 V	76 %	CB Scheme EN IEC UL	2 in	0.62 in	15.7 mm	25.4 mm	50.8 mm	25.4 mm	-25 °C	70 °C	Universal Input			330 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VSK-S5 Series

Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
