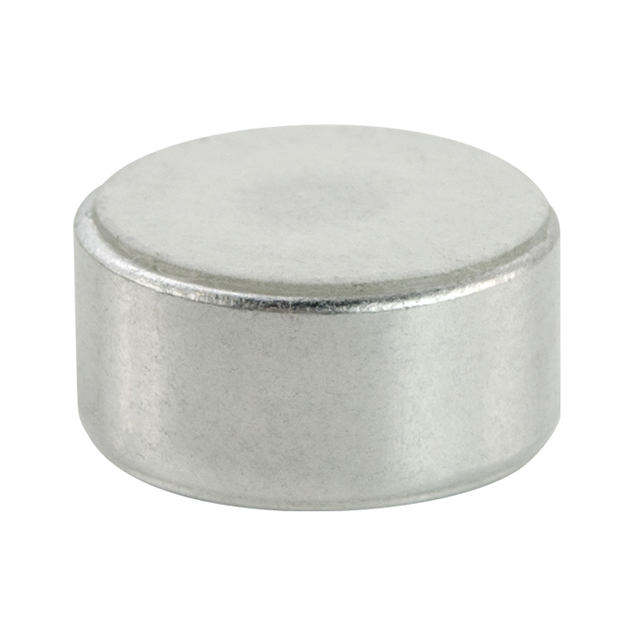

CMC-9745-130T

Active

CUI Devices

MIC COND ANLG OMNI -42DB 0.382"D

Search across all available documentation for this part.

Active

CUI Devices

MIC COND ANLG OMNI -42DB 0.382"D

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Output Type	Impedance	Direction	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Type	Frequency Range [Min]	Frequency Range [Max]	Port Location	Height (Max) [Max]	Height (Max)	Sensitivity	Termination	S/N Ratio	Shape	Current - Supply	Ratings	Height (Max) [Max]
CUI Devices CMC-9745-37L100	9.7 mm	0.382 in	Analog	2 kOhms	Unidirectional	1.5 VDC	9 V	1.5 V	Electret Condenser	100 Hz	12 kHz	Top	0.185 "	4.7 mm	-37 dB	Wire Leads	72 dB	Circular	400 çA
CUI Devices CMC-9745-37T	9.7 mm	0.382 in	Analog	2.2 kOhms	Unidirectional	1.5 VDC	9 V	1.5 V	Electret Condenser	100 Hz	12 kHz	Top	0.185 "	4.7 mm	-37 dB	Solder Pads	69 dB	Circular	400 çA
CUI Devices CMC-9745-130T	9.7 mm	0.382 in	Analog	2.2 kOhms	Omnidirectional	2 VDC	10 V	2 V	Electret Condenser	100 Hz	20 kHz	Top	0.177 in			Solder Pads	60 dB	Circular	500 µA	IP67	4.5 mm
CUI Devices CMC-9745-37T2	9.7 mm	0.382 in	Analog	2 kOhms	Unidirectional	1.5 VDC	9 V	1.5 V	Electret Condenser	100 Hz	12 kHz	Top	0.185 "	4.7 mm	-37 dB	Solder Pads	69 dB	Circular	400 çA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Hz ~ 20 kHz Analog Microphone Electret Condenser 2 V ~ 10 V Omnidirectional (-42dB ±3dB @ 94dB SPL) Solder Pads
