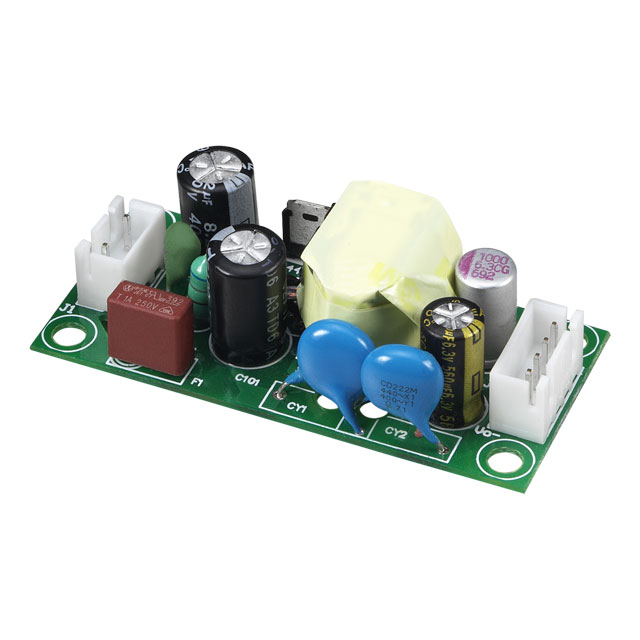

CFM12S240-T
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 24V 12W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFM12S240-T
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 24V 12W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM12S240-T |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | cURus, FCC, NEMKO, CE |
| Current - Output 1 | 500 mA |
| Efficiency | 87 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 12 W |
| Size / Dimension [x] | 54.6 mm, 2.15 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.68 in, 17.3 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.89 | |
| 5 | $ 10.56 | |||
| 10 | $ 10.25 | |||
| 25 | $ 9.94 | |||
| 50 | $ 9.54 | |||
| 100 | $ 9.06 | |||
Description
General part information
CFM12 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
