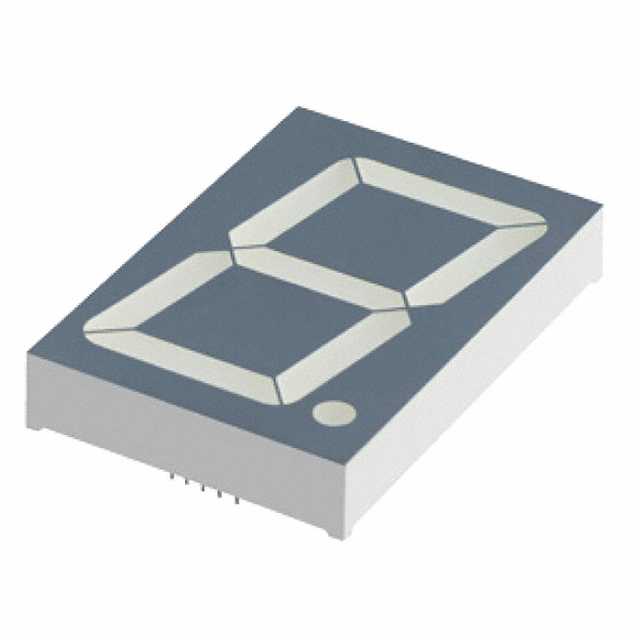

XDVG57A

Active

SunLED

DISPLAY 7SEG 2.3" SGL GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDVG57A

Active

SunLED

DISPLAY 7SEG 2.3" SGL GRN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDVG57A

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	2.3 in
Digit/Alpha Size	58.42 mm
Display Type	7-Segment
Millicandela Rating	62 mcd
Number of Characters [custom]	1
Package / Case	2.367 in
Package / Case	60.1 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	150 mW
Size / Dimension [x]	2.756 in
Size / Dimension [x]	70 mm
Size / Dimension [y]	48 mm
Size / Dimension [y]	1.89 in
Size / Dimension [z]	0.472 "
Size / Dimension [z]	12 mm

XDVG57 Series

Part	Color	Number of Characters [custom]	Common Pin	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Display Type	Package / Case	Package / Case	Package / Case
SunLED XDVG57A	Green	1	Common Anode	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	62 mcd	150 mW	2.3 in	58.42 mm	10 mA	7-Segment	2.367 in	60.1 mm	10-DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 5.37

Description

General part information

XDVG57 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 8V 10mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.367", 60.10mm)
