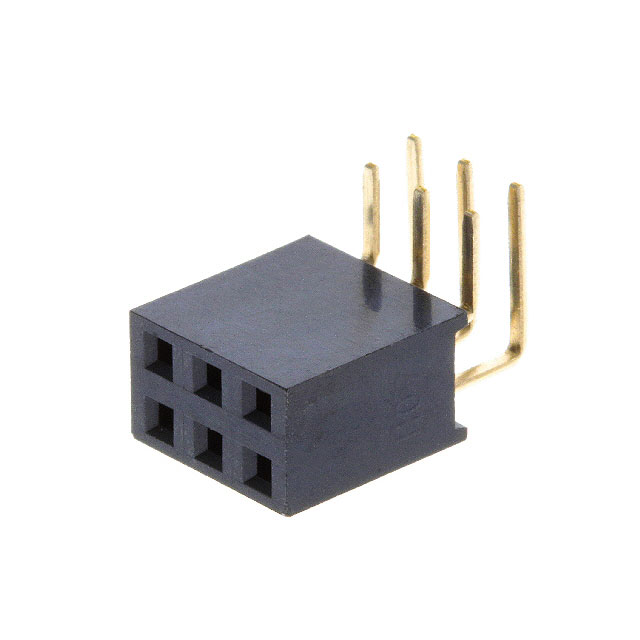

FR20203HBDN - FR20203HBDN

FR20203HBDN

Active
METZ CONNECT USA Inc.

RECEPTACLE, THR, DUAL ROW, .100"

Deep-Dive with AI

Search across all available documentation for this part.

FR20203HBDN - FR20203HBDN

FR20203HBDN

Active
METZ CONNECT USA Inc.

RECEPTACLE, THR, DUAL ROW, .100"

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationFR20203HBDN
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish Thickness - MatingFlash
Contact Length - Post0.114 in
Contact Length - Post2.9 mm
Contact MaterialCopper
Contact ShapeSquare
Contact TypeFemale Socket
Fastening TypePush-Pull
Ingress ProtectionIP00
Insulation ColorBlack
Insulation Height0.197 in
Insulation Height5 mm
Insulation MaterialPolyethylene Terephthalate (PET), Polyester
Mounting TypeThrough Hole, Right Angle
Number of Positions6
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 0.66
10$ 0.57
100$ 0.47
500$ 0.41
1000$ 0.34
5000$ 0.30
10000$ 0.28

Description

General part information

FR20203HB Series

6 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
